4' F33 420d High-pressure pump

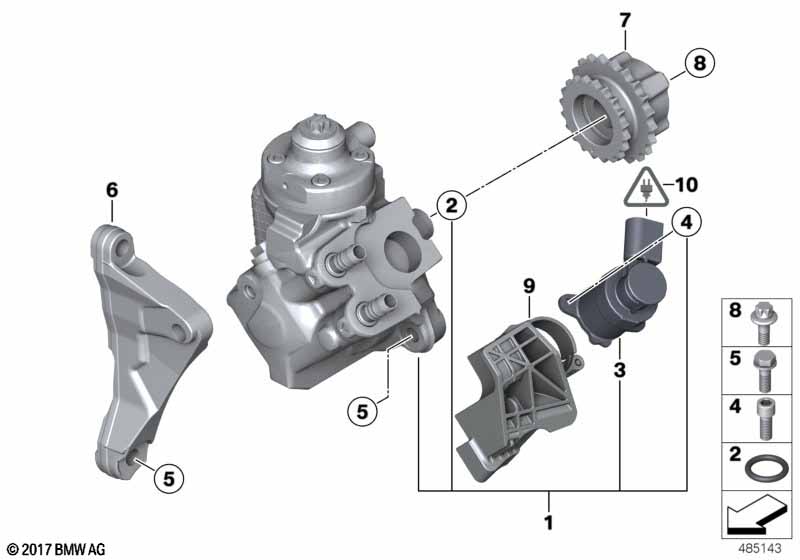

High-pressure pump
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exchange high-pressure pump 1 10/2016 13518511627 ENDED
01 Exchange high-pressure pump 1 05/2017 13518597647 ENDED
01 Exchange high-pressure pump 1 05/2017 13518472282
only in conjunction with
-- Cover for high-pressure pump 1 05/2017 13538588219
01 Exchange high-pressure pump 1 13518472282
02 O-ring 1 13517804377
03 Flow-control valve 1 13518574787
04 Fillister-head screw M5X18 2 13517801986
05 Hex bolt with washer M8X33-U1 6 07119906149
06 Support 1 13518511628
07 Sprocket 1 13528518189
08 ASA-Bolt M12X1 1 13527800395
09 Cover for high-pressure pump 1 05/2017 13538588219
Notes
  • ENDED = the part has been discontinued (no longer available).
