4' F33 420d High pressure accumulator/injector/line

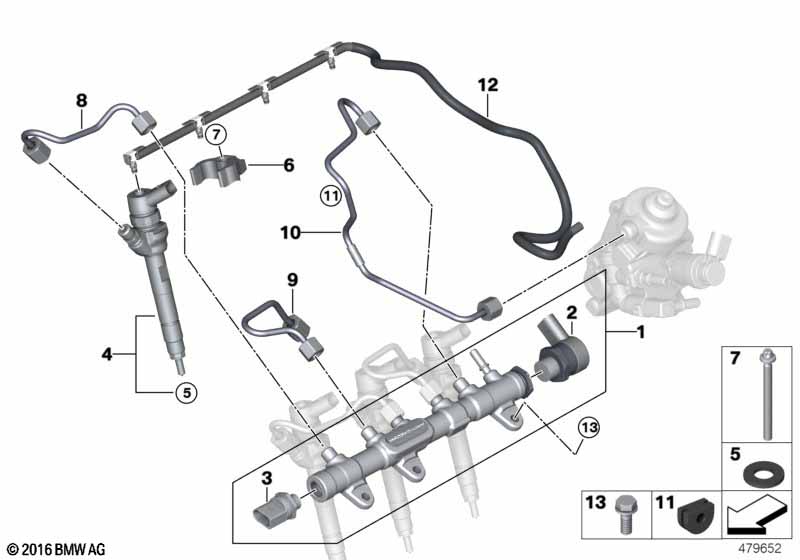

High pressure accumulator/injector/line
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pressure accumulator 1 13538514154
02 Pressure regulating valve 1 13537801992
03 Pressure sensor 1 13538577623
04 RP injector 4 13538514148
04 Exch. injector 4 13538514149
05 Gasket ring 4 13532247156 $3.63
06 Clamping jaw, injector 4 13537809798
07 Screw 4 13537805256
08 Pressure hose assy 2 10/2016 13538514159 ENDED
08 Pressure hose assy 2 13538579244
09 Pressure hose assy 2 10/2016 13538514158 ENDED
09 Pressure hose assy 2 03/2018 13538579243 ENDED
09 Pressure hose assy 2 03/2018 13538472971
09 Pressure hose assy 2 03/2018 06/2018 13538514162 ENDED
09 Pressure hose assy 2 03/2018 13538580298
10 Pressure hose assy 1 10/2016 13538514165 ENDED
10 Pressure hose assy 1 13538579242
11 Grommet 1 13537812876
12 Overflow oil line 1 13538583458
13 Hex bolt with washer M8X22 3 09/2016 07119905739 $0.62
13 Star-socket screw M8X25 3 09/2016 07119907174
Notes
  • ENDED = the part has been discontinued (no longer available).
