4' F33 420d Throttle Housing Assy

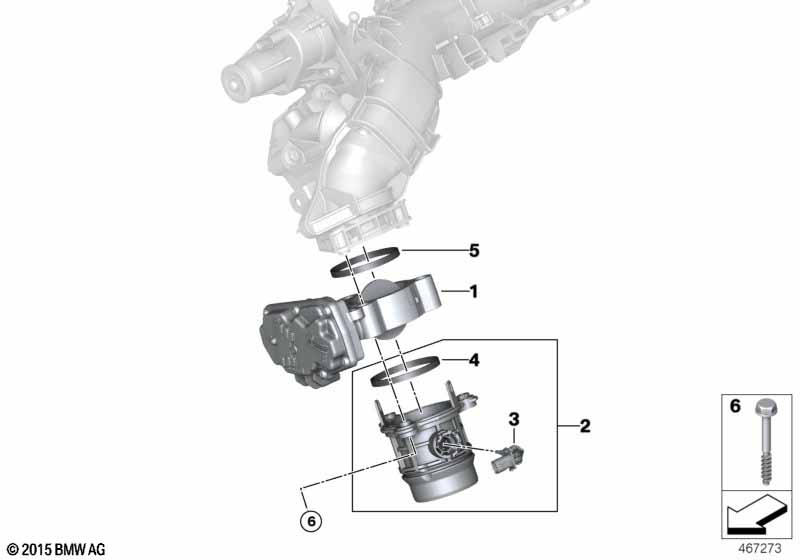

Throttle Housing Assy
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Throttle 1 13548512452
02 Charge air tube 1 11618511339
03 Intake air temperature sensor 1 13628519445
04 Gasket 1 11618576280
05 Profile-gasket 1 11617633521
06 Hex bolt 6,0X50 3 13547561349
