4' F33 420d Front seat backrest frame

Front seat backrest frame

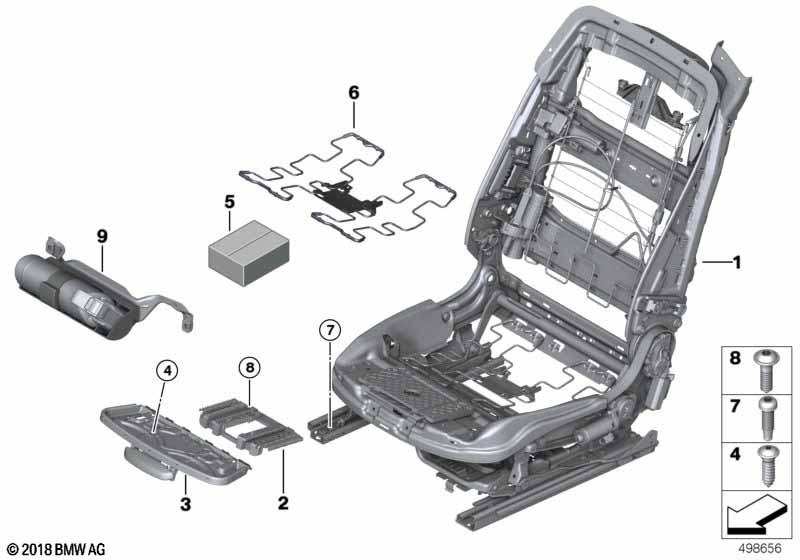

No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Sports seat

S481A=No
01 Seat mech. assembly, Sport seat, left 1 52107351865
01 Seat mech. assembly, Sport seat, right 1 52107351866
For vehicles with
Sports seat

S481A=Yes
01 Seat mech. assembly, Sport seat, left 1 52107351865
01 Seat mech. assembly, Sport seat, right 1 52107351866
02 Connection element for thigh support 2 12/2015 52107161312 $11.64
03 Carrier thigh support 2 12/2015 52107161311 $55.77
04 Sheet metal screw ST 7,2 4 07147446254
05 Mounting hardware kit for seat frame 2 52107314275
For vehicles with
Sports seat

S481A=No
06 Spring support, basic 2 52107321955
For vehicles with
Sports seat

S481A=Yes
06 Spring support, basic 2 52107321955
07 Fillister-head screw M10X28 10 07149321690
For vehicles with
Sports seat

S481A=Yes
08 Torx-bolt with washer M5X16 4 12/2010 51138400228 $1.58 ENDED
08 Torx-bolt with washer M5X16 4 51179158844
09 Fire extinguisher with mount 1 52109490269
Notes
  • ENDED = the part has been discontinued (no longer available).
