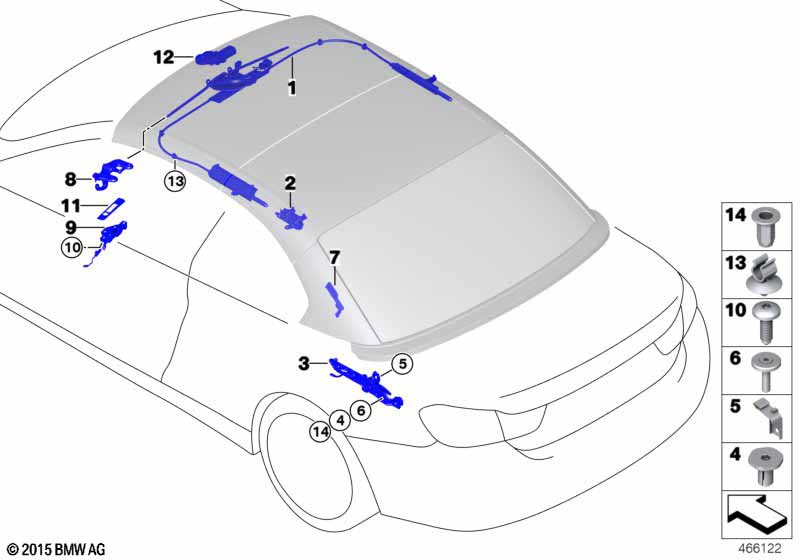

4' F33 420d Plugs

Plugs
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Lock for roof shell, complete 1 54377344474
02 Slide rail, left 1 54377347369
02 Slide rail, right 1 54377347370
03 Coupling lock, left 1 54377344479
03 Coupling lock, right 1 54377344480
04 Threaded socket for coupling lock 2 07147181364 $8.46
05 Spring set 1 54377277496 +core
06 combination countersunk-head screw M8X35 2 07147323469
07 Bracket, water drain hose LINKS 1 54377251763
07 Bracket, water drain hose RECHTS 1 54377251764
08 Retainer for apron, left 1 54377183317 $40.91
only in conjunction with
08 Retainer for apron, right 1 54377183318 $40.91
only in conjunction with
-- Washer 1 54377148164 $2.54
09 Base plate left 1 05/2014 54377290347
09 Base plate right 1 05/2014 54377290348
Install in pairs only
09 Base plate right 1 05/2014 54377290348
only in conjunction with
-- Base plate left 1 05/2014 54377290347
09 Base plate left 1 05/2014 54377290347
only in conjunction with
-- Base plate right 1 05/2014 54377290348
10 Torx screw with washer ISA M6X17 6 07147285473
11 Covering left SCHWARZ 1 54377349475 ENDED
11 Covering left SCHWARZ 1 54377453371
11 Covering right SCHWARZ 1 54377349476 ENDED
11 Covering right SCHWARZ 1 54377453372
12 Drive, locking mechanism VORN 1 54377355824
13 Clip 4 54377148162 $0.34
14 Blind rivet nut M12X1,5 LH 2 07147349071
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
