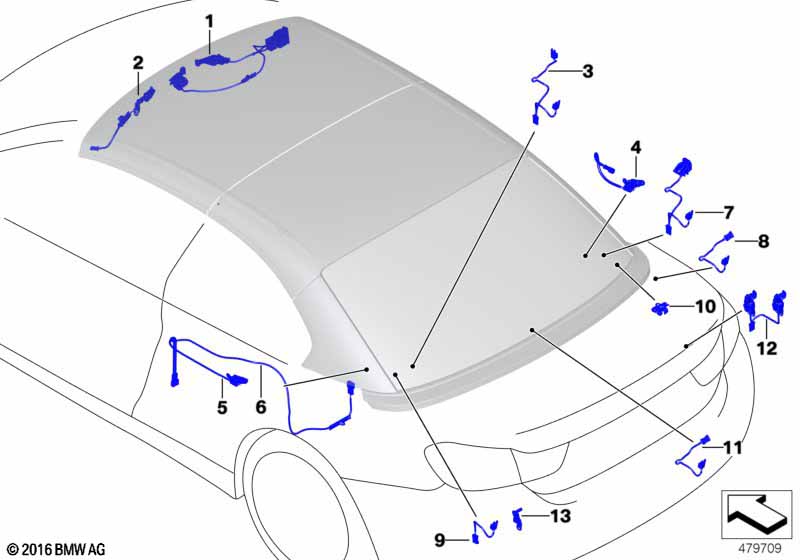

4' F33 420d Microswitch

Microswitch
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Wiring harness for lock motor 1 54377183321 $57.22
02 Microswitch, baseplate 1 54377390495
03 Hall sensor, roof sections 1 54377148157 $21.12
04 Hall sensor, ring buckle coupling 1 54377148150 $40.84
05 Wiring harness for microswitch, right 1 54377188600 $26.66
06 Wiring harness for microswitch, left 1 54377353883
07 Base plate right 1 54377197982 $86.34
08 Hall sensor, roof package 1 54377148160 $42.79
09 Hall sensor, rear module 1 54377148152 $27.46
Luggage compartment partition
10 Hall switch 1 61319171484
11 Wiring harness, end cap 1 54377353887
12 Wiring harness for loading aid, left 1 54377353885
12 Wiring harness for loading aid, right 1 54377353886
13 Bracket, Hall sensor LINKS 1 51177345151
13 Bracket, Hall sensor RECHTS 1 51177345152
