4' F32 LCI 420d Gearbox mounting parts

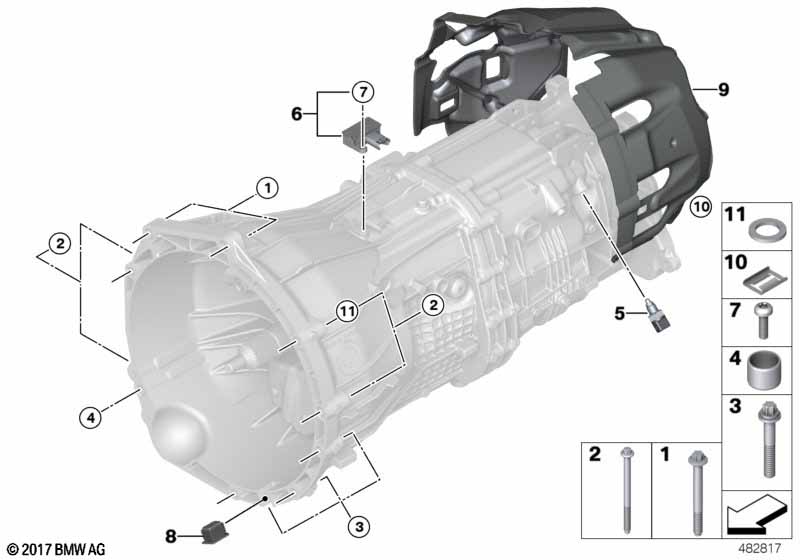

Gearbox mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Torx bolt M12X75 2 23001222893 $1.62
02 Torx bolt M12X100-8.8ZNS3 4 23007565047
03 ASA-Bolt M8X50-8.8-ZNS3 3 23001222887 $1.13
04 Dowel D=14,5MM 2 11117524470 $1.65
06 Gear sensor 1 23147649085
07 ISA screw M5X12-8.8-MK 2 23149908749
08 Blind plug 1 23008629977
09 Noise insulation, transmission housing 1 23108609376
10 Spring nut 4 24147605027
11 Washer 12-200 HV-ZNS3 1 07119906063
