4' F32 LCI 420d Sound insulating front

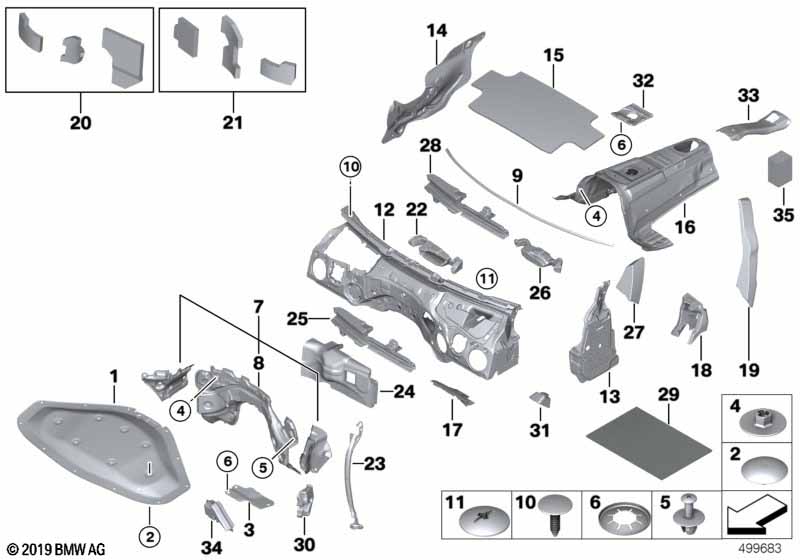

Sound insulating front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Sound insulating engine hood 1 51487221993
02 Clip 18 51489119216 $0.37
03 Sound insulation, engine compartm., left 1 51487265119
03 Sound insulation,engine compartm.,right 1 51487265120
04 Clip nut 5X9 D=30 SW10 6 07147261260
05 Expanding rivet 4 07147282845
06 Axial securing clip 5,8MM 4 07147295776
06 Axial securing clip 7 51412756212 $0.21
07 Sound insulating dash panel 1 03/2015 51487295801
07 Sound insulating dash panel 1 51487394289
08 Sound insulat.dash panel engine room ce. RHD 1 51487431674
09 Sound insulation f apron L=1430MM 1 51487325890
10 Plug-in retainer 7 07147283890
11 Push-button, gray 10 51488126849 $0.42
12 Upper sound insulating dash panel RHD 1 51487221967
13 Sound insulation, firewall A-pillar RHD 1 51487286093
14 Sound insulation, door left 1 51487345325
14 Sound insulation, door right 1 51487345326
14 Sound insulation, door, front left 1 51487410005
14 Sound insulation, door, front right 1 51487410006
For vehicles with
Glass roof, electrical

S403A=No
15 Sound insulation for roof, front 1 51487276904
15 Sound insulation roof 1 51487495584
16 Sound insulation, tunnel 1 51487221999
17 Seal for cable duct 1 51487362649
21 Set, noise insulation, heater RHD 1 51487343534
For vehicles with
Automatic air conditioning

S534A=Yes
22 Sound insulating heater center RHD 1 51487293831
23 Seal, side frame, left 1 51487322913
23 Seal, side frame, right 1 51487322914
29 Sound deadener 1160X700MM 1 51488165271 $50.35
30 Seal, A-pillar, right RHD 1 51487402770
31 Sound insulat., accelerator pedal mod. 1 51487221980
32 Sound insulation, condensation drain 1 51487360505
34 Partition side panel 2 51487423815
