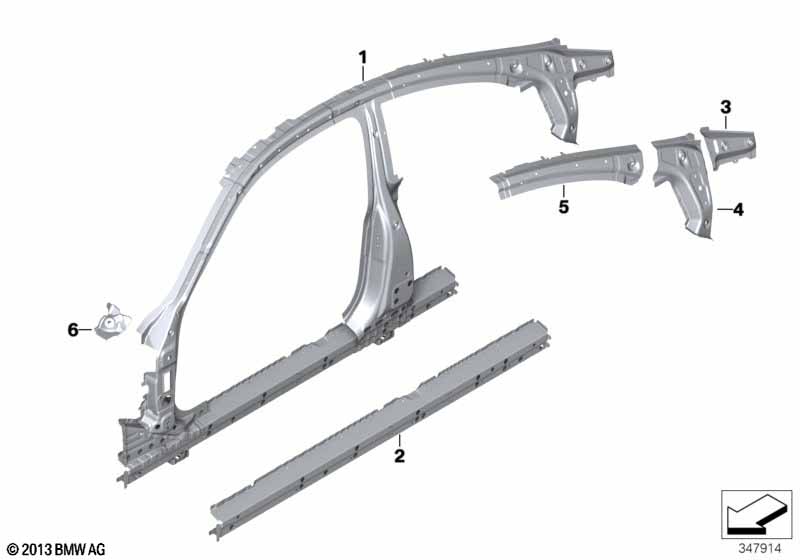

4' F32 LCI 420dX Side frame section, center

Side frame section, center
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Side frame, center left 1 41007427485
Required for repair
01 Side frame, center right 1 41007427486
Required for repair
-- Hexagon screw with taper M12X35 4 07148499258
02 Reinforcement, entry, left 1 41217297977
02 Reinforcement, entry, right 1 41217297978
03 Tension band column C, left 1 41007343117
03 Tension band column C, right 1 41007343118
04 C-pillar reinforcement, left 1 41007343115
04 C-pillar reinforcement, right 1 41007343116
05 Reinforcement, interior roof frame, left 1 41007347305
05 Reinforcement, interior roof frame,right 1 41007347306 NoS
Notes
  • NoS = No Stock (Part, central, not in stock.)
