6' E24 633CSi Getrag 265/6 gearset parts

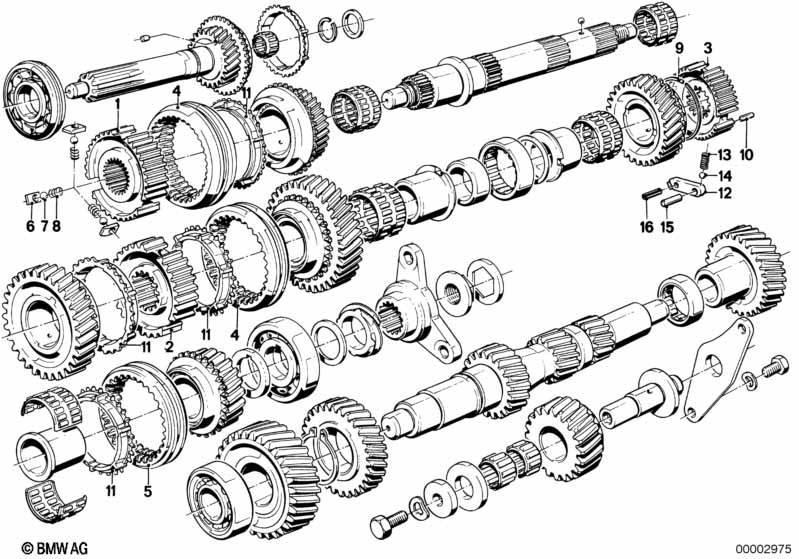

Getrag 265/6 gearset parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
ONLY APPLIES TO 3RD AND 4TH GEAR
01 Guide sleeve assembly 1 23231205226 $430.32 ENDED
ONLY APPLIES TO 1ST AND 2ND GEAR
02 Guide sleeve 1st and 2nd gear 1 23231209363 $416.27
for 5th and reverse only
for reverse gear synchronizer only
03 Guide sleeve 5th and reverse gear 1 09/1980 09/1982 23231224022 ENDED
03 Guide sleeve 5th and reverse gear 1 09/1980 09/1982 23231224022 ENDED
ONLY APPLIES TO 3RD AND 4TH GEAR
04 Guide sleeve assembly 1 23231205226 $430.32 ENDED
ONLY APPLIES TO 1ST AND 2ND GEAR
04 Guide sleeve 1st and 2nd gear 1 23231209363 $416.27
for 5th and reverse only
for reverse gear synchronizer only
05 Guide sleeve 5th and reverse gear 1 09/1980 09/1982 23231224022 ENDED
05 Guide sleeve 5th and reverse gear 1 09/1980 09/1982 23231224022 ENDED
06 Insert 1 23231202736 $6.05 ENDED
07 Ball 6,5MM III 1 07119986272 $0.35 ENDED
08 Compression spring 1 23231205228 $1.07
09 Snap ring 1 23231205233 $2.08 ENDED
10 Roll pin 4X14 1 07119941225 ENDED
11 Synchronizer ring 1 23231209332 $108.94
ONLY APPLIES TO SYNCHRON.REVERSE GEAR
12 Lever 1 09/1980 09/1982 23231224025 $12.16
12 Lever 1 09/1980 09/1982 23231224025 $12.16
13 Compression spring D=0,4MM 1 09/1980 09/1982 23231224047 $1.12 ENDED
13 Compression spring D=0,4MM 1 09/1980 09/1982 23231224047 $1.12 ENDED
14 Ball 4,5MM III 1 09/1980 09/1982 07119986245 ENDED
14 Ball 4,5MM III 1 09/1980 09/1982 07119986245 ENDED
15 Dowel pin 1 09/1980 09/1982 23311205044 $1.95 ENDED
15 Dowel pin 1 09/1980 09/1982 23311205044 $1.95 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
