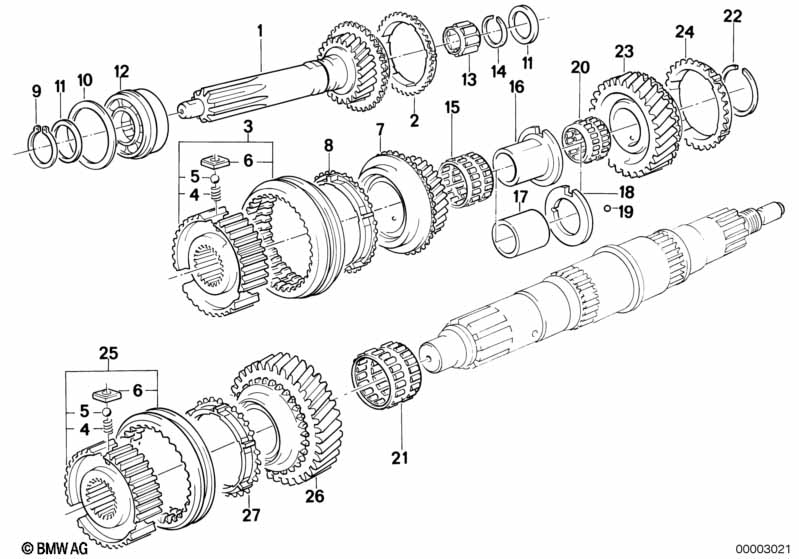

6' E24 633CSi Getrag 260/5/50 gear wheel set,sing part

Getrag 260/5/50 gear wheel set,sing part
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Drive Shaft 1 23211228286 $625.10
02 Synchronizer ring 4 23231224230 $111.71
03 Guide sleeve 3rd and 4th gear 1 23231224281 $244.40 ENDED
03 Repair kit,guide sleeve,3rd and 4th gear 1 23230005220 $332.57 ENDED
04 Compression spring X 23231205228 $1.07
05 Ball 6,5MM III X 07119986272 $0.35 ENDED
06 Insert X 23231224172 $4.78 ENDED
07 Shift gear for 3rd. gear 1 23221228017 $372.74
08 Synchronizer ring 1 23231224230 $111.71
09 Snap ring 35X2,00 X 23211209359 $2.58
09 Snap ring 35X2,10 X 23211209360 $2.58
09 Snap ring 35X2,20 X 23211209361 $2.58
09 Snap ring 35X2,30 X 23211209362 $2.17
10 Shim 80X66X0,3 X 23221224376 $9.81
10 Shim 80X66X0,4 X 23221224377 $4.08
10 Shim 80X66X0,5 X 23221224378 $7.02
11 Support 35,1X48X3 2 23231209325 $8.32
12 Ball bearing 80X35X20 X 23121224164 $74.42
13 Needle cage 35X23X16 1 23221207784 $18.62
14 Snap ring 35X2,40 X 23221224183 $2.55
15 Needle cage 50X45X30 1 23221224179 $158.57
16 Spacer bush 1 09/1985 23221224182 $73.10 ENDED
16 Spacer bush 1 09/1985 23221224292 $73.10 ENDED
only in conjunction with
-- Stop disk 1 09/1985 23221224291 $8.72
-- Ball 1 09/1985 23221224293 $0.30
-- Output shaft 1 09/1985 23211224294 $756.48
20 Needle cage 50X45X27 1 23221224185 $53.80
21 Needle cage 50X55X30 1 23221224287 $53.80
22 Lock Ring 52X44X2,00 X 23221224190 $3.18
22 Lock Ring 52X44X1,95 X 23221224191 $5.25
22 Lock Ring 52X44X1,90 X 23221224192 $3.42
22 Lock Ring 52X44X1,85 X 23221224193 $3.40
22 Lock Ring 52X44X1,80 X 23221224194 $3.40
23 Shift gear for 2nd. gear 1 23221228018 $299.09
24 Synchronizer ring 1 23231224230 $111.71
25 Guide sleeve 1 23231224302 $430.32
26 Shift gear for 1st. gear 1 23221224256 ENDED
27 Synchronizer ring 1 23231224230 $111.71
Notes
  • ENDED = the part has been discontinued (no longer available).
