6' E24 633CSi Getrag 262 housing+attaching parts

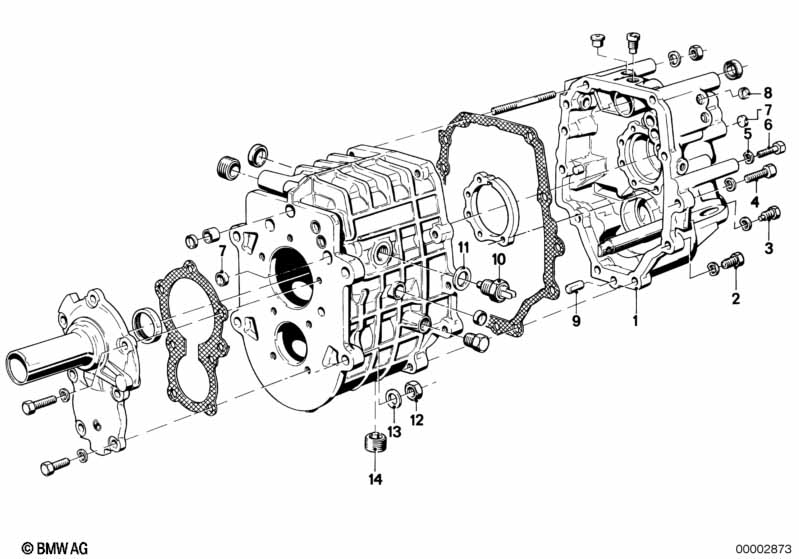

Getrag 262 housing+attaching parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Transmission cover 1 23111207237 $563.58 ENDED
01 Transmission cover 1 23111207779 ENDED
ONLY APPLIES TO REVERSE GEAR BRAKE
01 Transmission cover 1 23111224010 $348.19 ENDED
02 Hex bolt M8X22-8.8-ZNS3 2 07119904040
03 Hex bolt M8X20 1 23211202753 $6.36 ENDED
03 Hex bolt M8X20 1 23211207159 $2.75
04 Hex bolt M8X40 1 07119901161 $0.55 ENDED
04 Hex bolt M8X40-ZNNIV SI 1 07119905549 $1.05
04 Hex bolt M8X35 7 07119913676 $0.36
05 Wave washer B6 5 07119932099 $0.38
05 Wave washer B6-ZNS3 5 07119904496 $1.78 ENDED
06 Oval-head screw with anti-rotation lock M6X35-8.8-ZNS3 5 07129904259 $2.51
07 Cover lid D=15MM 4 07119937228 $1.02
08 Cover lid D=12MM 3 09/1984 07119937220 $1.84 ENDED
08 Cover lid D=12MM 3 07119906393
09 Dowel pin 10X32 2 07119942304 $0.92
10 Backup light switch M12X1,5 1 23141354071 $16.78
11 Gasket ring A12X15,5 AL 1 07119963130 $0.09
12 Hex nut M12 4 07119922139 $2.09
13 Washer A13/HV-ZNS 4 07119901766 $0.30
14 Screw plug M24X1,5 1 05/2004 23111224322 $5.59 ENDED
14 Screw plug M24X1,5 1 23117546876 $12.63
Notes
  • ENDED = the part has been discontinued (no longer available).
