6' E24 633CSi Getrag 262 gear whl.set parts/speedom.dr

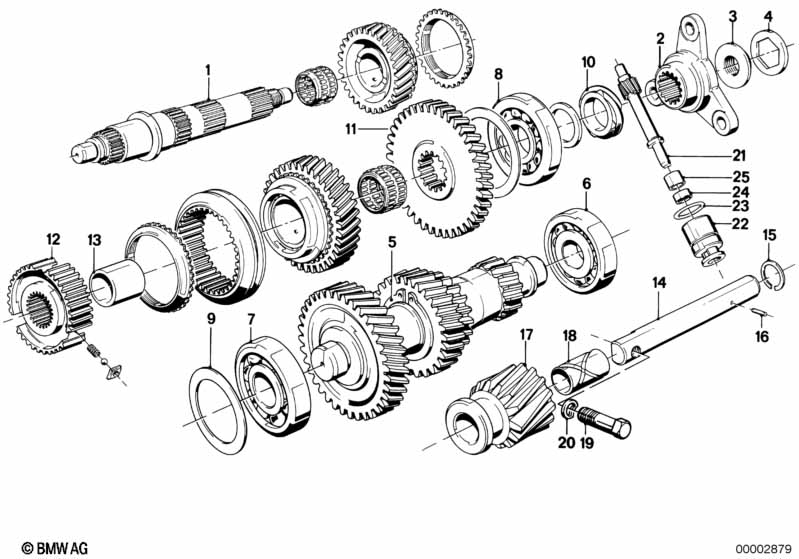

Getrag 262 gear whl.set parts/speedom.dr
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Output shaft 1 23211202543 ENDED
02 Output flange D=12MM 1 23211203061 $116.85
03 Collar nut M20X1,5 1 33121200258 $8.56
04 Securing plate 1 23211490120 $1.43
05 Lock Ring 42X1,75 1 07119934230 ENDED
06 Grooved ball bearing 66X28X18 1 23121202732 $24.37
07 Grooved ball bearing 25X62X17 1 07119981432 $26.75
08 Ball bearing 72X30X19 1 23121205522 $16.46
09 Shim 50X62X0,3 X 23121200409 $1.82
09 Shim 50X62X0,4 X 23121204575 $2.05
09 Shim 50X62X0,5 X 23121204576 $2.30
10 Speedometer drive 1 23221490119 $135.09
11 Reverse gear wheel Z=39 1 23221202744 $182.77
12 Guide sleeve 1st and 2nd gear 1 23231228478 $338.15 ENDED
14 Shaft 1 23211202745 $16.41 ENDED
16 Roll pin 6X12 1 07119941123 ENDED
17 Reverse gear with bush 1 23221202733 ENDED
18 Bush 1 23221202731 $13.50 ENDED
19 Hex bolt M10X50 1 07119913806 ENDED
21 Speedometer drive 1 23221200416 $105.44
22 Adaptor 1 23211202751 $88.92
23 O-ring 19,5X25,5X3 1 23211202752 $2.27 ENDED
23 O-ring 19,5X3 1 11431740045 $1.81
24 Shaft seal 8X14X6 1 23121490192 $14.05
25 Bush 1 23121630176 $1.21
Notes
  • ENDED = the part has been discontinued (no longer available).
