6' E24 633CSi Getrag 262 inner gear shifting parts

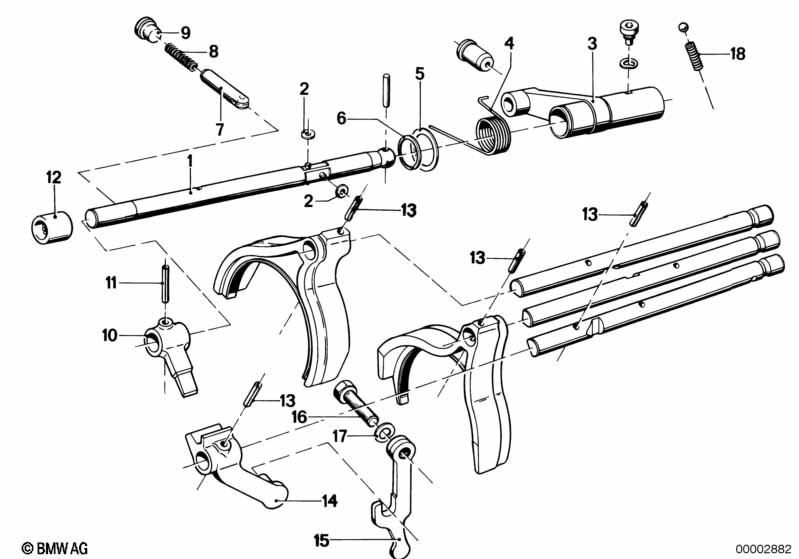

Getrag 262 inner gear shifting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Selector shaft 1 23319058951 $267.84 ENDED
02 Roll pin 4 23311224395 $9.24 ENDED
02 Roll pin 4 23317539086 $10.41
03 Selector cam 1 23311202766 $213.16 ENDED
03 Selector cam 1 23311224054 $213.16 ENDED
only in conjunction with
-- Shifting rod 1.and 2.gear 1 23311220308 ENDED
04 Retainer spring 1 23311202767 $2.44 ENDED
05 Shim 32X26X1,0 1 23311202769 $1.61 ENDED
06 Lock Ring 1 23311202768 $2.30 ENDED
07 Locking pin 1 23311205113 $25.45
08 Compression spring D=1,4 1 23311228153 $1.65
09 Blind plug 1 23311202762 $5.70 ENDED
09 Blind plug 1 23317545771 $6.03
10 Shift 1 23311202761 $64.93 ENDED
11 Roll pin 6X28 1 07119941270 $0.95 ENDED
12 Bearing ball cage 21X15X22 1 23111282569 $11.67 ENDED
12 Bearing ball cage 21X15X22 1 23111206948
12 Bearing ball cage 21X15X22 1 23111228404 ENDED
13 Roll pin 6X28 4 07119941381 $1.22
14 Driving dog 1 23311202754 ENDED
15 Shift lever 1 23311202755 $47.99
ONLY APPLIES TO REVERSE GEAR BRAKE
15 Shift lever 1 23311224018 $43.25 ENDED
16 Hex bolt M10X1X35 1 07119911636 ENDED
17 Wave washer B10-ZNS 1 09/1984 07119932122 $0.38 ENDED
17 Wave washer B10-ZNS3 1 07119904463
18 Compression spring D=1,3MM 2 23111666227 $1.83
Notes
  • ENDED = the part has been discontinued (no longer available).
