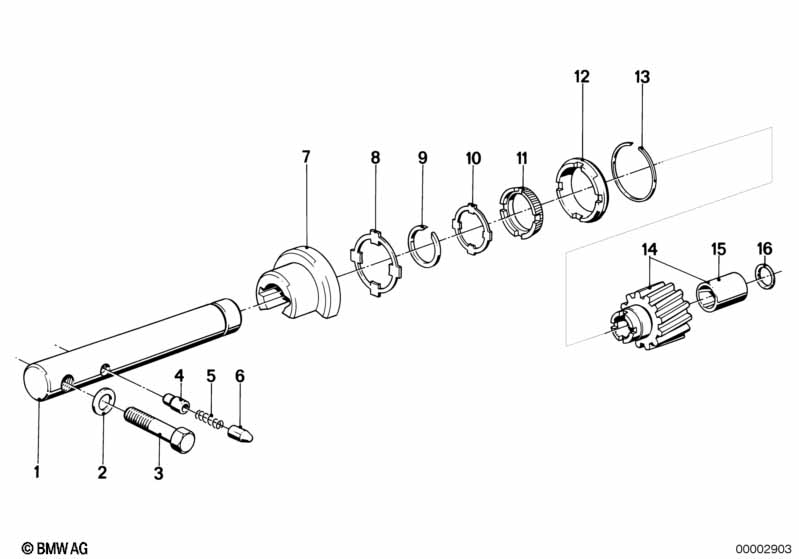

6' E24 633CSi Getrag 262 synchron.reverse gear

Getrag 262 synchron.reverse gear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
ONLY APPLIES TO REVERSE GEAR BRAKE
01 Shaft 1 23211209255 ENDED
02 Wave washer B10-ZNS 1 09/1984 07119932122 $0.38 ENDED
02 Wave washer B10-ZNS3 1 07119904463
03 Hex bolt M10X50 1 07119913806 ENDED
04 Locking pin 1 23231224013 $8.04 ENDED
05 Compression spring 1 23231224015 ENDED
06 Pin 1 23231224014 $7.81 ENDED
07 Shift sleeve 1 23231224012 $93.47 ENDED
08 Driving dog 1 23231224009 ENDED
09 Snap ring 1 23221630172 $5.75
10 Driving dog 1 23231224008 ENDED
11 Synchronizer ring 1 23231224007 ENDED
12 Synchronizer ring 1 23231224011 ENDED
13 Snap ring 1 23231224019 $1.67 ENDED
14 Reverse gear with bush 1 23221224005 $253.33 ENDED
15 Bush 1 23221202731 $13.50 ENDED
16 O-ring 19X2,4 1 23211224016 $1.92 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
