6' E24 633CSi Ignition wiring/spark plug/distrib.c..

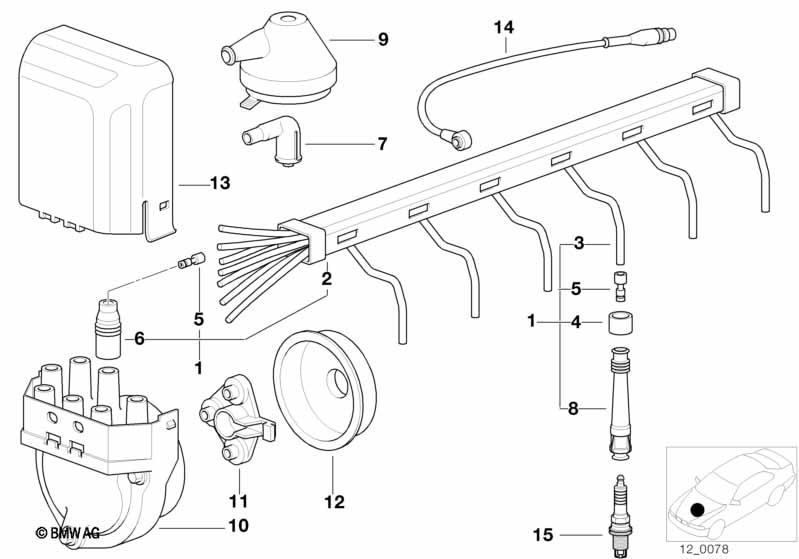

Ignition wiring/spark plug/distrib.c..
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Ignition wiring 1 01/1984 06/1987 12121705718 $261.56
02 Ignition wiring tube 1 01/1984 06/1987 12121289413 $7.80 ENDED
03 Ignition wire X 01/1984 06/1987 12121705675 $11.91 +core
04 Identification ring ZYL.1 2 01/1984 06/1987 12121706186 $0.60
04 Identification ring ZYL.2 2 01/1984 06/1987 12121706187 $0.60
04 Identification ring ZYL.3 2 01/1984 06/1987 12121706188 $0.60
04 Identification ring ZYL.4 2 01/1984 06/1987 12121706189 $0.60
04 Identification ring ZYL.5 2 01/1984 06/1987 12121706190 $0.60
04 Identification ring ZYL.6 2 01/1984 06/1987 12121706191 $0.60 ENDED
05 Circular connector X 01/1984 06/1987 12121705656 $1.73 +core
06 Suppressing socket 1000-OHM 7 01/1984 06/1987 12121289825 $9.89 ENDED
06 Suppressing socket 7 01/1984 06/1987 12121289828
07 Suppressing socket 1000-OHM 1 01/1984 06/1987 12121289825 $9.89 ENDED
07 Suppressing socket 1 01/1984 06/1987 12121289828
08 Spark plug socket 5000-OHM 6 01/1984 06/1987 12121289821 $13.95 ENDED
08 Spark plug socket 6 01/1984 06/1987 12121289824
09 Protection cap 1 01/1984 06/1987 12121284464 $9.10 ENDED
09 Protection cap 1 01/1984 06/1987 12121727606
10 Distributor cap 1 01/1984 06/1987 12111725070 $129.52 ENDED
10 Distributor cap 1 01/1984 06/1987 12111715905
11 Rotor 1 01/1984 06/1987 12111734110 $30.76 ENDED
11 Rotor 1 01/1984 06/1987 12111715906
12 Cover 1 01/1984 06/1987 12111288167 $25.02 ENDED
12 Cover 1 01/1984 06/1987 12111277194 ENDED
13 Protection cap 1 01/1984 06/1987 12121716299 $13.37
15 Spark plug BOSCH WR9LS 6 12121279599 $15.23
15 Spark plug BOSCH WR9LS 6 12121279599 $15.23
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
