6' E24 635CSi Mounting parts for trunk floor panel

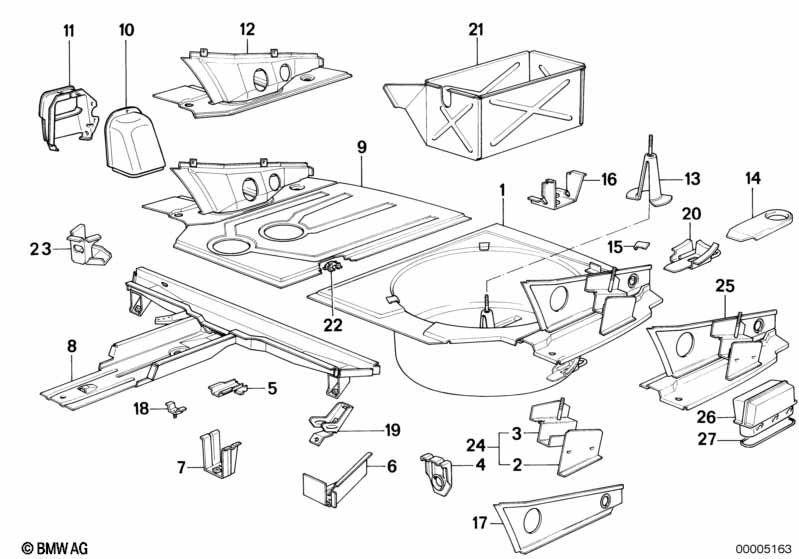

Mounting parts for trunk floor panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Floor panel trunk lateral BASIS 1 04/1986 41121942043 $380.98
only in conjunction with
-- Breather 1 04/1986 64221937232 $22.83
02 Support 1 04/1986 41121843941 $22.60 ENDED
only in conjunction with
-- Breather 1 04/1986 64221937232 $22.83
03 Jack fixture 1 04/1986 41121826706 $6.38
only in conjunction with
-- Breather 1 04/1986 64221937232 $22.83
04 Holder 1 41121831992 $3.67
only in conjunction with
-- Breather 1 64221937232 $22.83
06 Sheet 1 41121831993 $5.69 ENDED
only in conjunction with
-- Breather 1 64221937232 $22.83
08 Cross member rear axle carrier 1 12/1983 41121922009 $248.59
only in conjunction with
08 Cross member rear axle carrier 1 12/1983 41121922009 $248.59
only in conjunction with
-- Breather 1 12/1983 64221937232 $22.83
-- Breather 1 12/1983 64221937232 $22.83
09 Floor panel trunk lateral BASIS 1 04/1986 41121942044 $384.87
only in conjunction with
-- Breather 1 04/1986 64221937232 $22.83
12 Partition trunk rear right 1 04/1986 41121869276 $218.74 ENDED
12 Lateral trim panel right 1 04/1986 41121942042 $218.74
only in conjunction with
-- Breather 1 04/1986 64221937232 $22.83
13 Bracket for spare wheel 1 41121909076 $10.25
15 Support 3 41121820263 $11.51 ENDED
16 Bracket fuel tank inner rear 1 41121820964 $12.28 ENDED
16 Bracket fuel tank inner rear 1 41121976604 $20.90 ENDED
17 Partition left 1 41131820497 $23.40
18 Brake pipe bracket 1 05/1982 41121881456 $2.71 ENDED
18 Brake pipe bracket 1 05/1982 41121881456 $2.71 ENDED
20 Towing suspension 1 05/1982 41121881766 $31.21
20 Towing suspension 1 05/1982 41121881766 $31.21
22 Bow 1 05/1982 18211246056 $2.88
22 Bow 1 05/1982 18211246056 $2.88
23 Bracket fuel tank rear right 1 41121935879 $12.14 ENDED
25 Lateral trim panel left 1 04/1986 41121942041 $218.74
only in conjunction with
-- Breather 1 04/1986 64221937232 $22.83
26 Breather 1 64221937232 $22.83
27 Gasket 1 64221937692 $1.97
Notes
  • ENDED = the part has been discontinued (no longer available).
