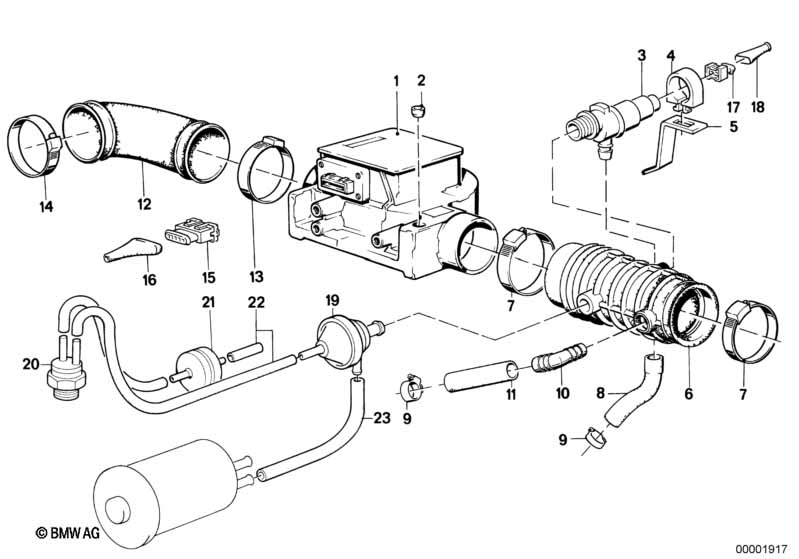

6' E24 635CSi Volume air flow sensor

Volume air flow sensor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Volume air flow sensor 1 06/1987 13621286064 $580.96 ENDED
01 Exch. mass air flow sensor 1 06/1987 13627547981 $580.29
01 Air-flow sensor 1 06/1987 13621466349 $518.00 +core
02 Cap SERVICE 1 06/1987 13621274118 $0.37 ENDED
03 L-shape idle regulating valve 1 06/1987 13411286065 $213.68 ENDED, SI 130184338
04 Rubber Mounting 1 06/1987 13411705564 $2.40 +core
05 Bracket idle adjuster 1 06/1987 13411710794 $0.65 ENDED
06 Rubber boot 1 06/1987 13541707080 $21.73
07 Hose clamp L77-84 2 06/1987 07129952131 $1.78
08 Hose 1 06/1987 13411710793 $27.35
10 Support 1 06/1987 13541272473 $1.43
11 Vent hose D=20MM 1 06/1987 11151276485 $7.54
12 Hose 1 06/1987 13711261370 $29.23
13 Hose clamp L83-90 1 06/1987 07129952133 $1.78
14 Hose clamp L71-78 1 06/1987 07129952129 $1.48
15 Plug housing 5 POL. 1 06/1987 12521706069 $2.98 ENDED
16 Protection cap L=27,0MM 1 06/1987 61131270973 $6.33
17 Plug housing 3 POL. 1 06/1987 12521706068 $8.52 ENDED
18 Protection cap L=17,5MM 1 06/1987 61131358603 $5.32
19 Air valve 1 06/1987 11631706273 $40.73 +core
20 Thermovalve 45CEL 1 06/1987 11741264132 $136.21
21 Retarding valve 60S 1 06/1987 11631711519 $14.14
22 Vacuum hose black 3,5X1,8 X 06/1987 11727545323 $14.82
23 Fuel hose 8X13MM X 06/1987 16121180409 $20.43
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
