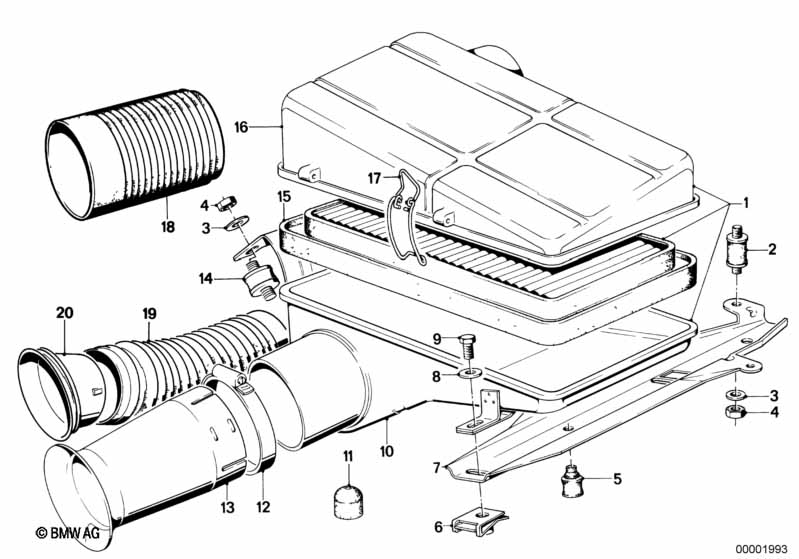

6' E24 635CSi Intake silencer / Filter cartridge Intake silencer / Filter cartridge

Intake silencer / Filter cartridge Intake silencer / Filter cartridge
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake muffler 1 06/1987 13711271582 $246.64 ENDED
02 Rubber Mounting 3 06/1987 13621359216 $10.80 ENDED
03 Washer 6,4 4 06/1987 07119936425 $0.09 ENDED
03 Washer A6,4-200HV-ZNS3 4 06/1987 07119903791 $0.11
04 Hex nut M6 X 06/1987 23112322368 $0.38 ENDED
04 Hex nut M6-8-ZNS X 06/1987 07119922832 $0.37 ENDED
04 Hex nut M6-8-ZNNIV SI X 06/1987 07119905543 $0.38
05 Bump stop 2 06/1987 13711263819 $2.08
06 Nut holder M6 2 06/1987 13711271627 ENDED
06 Nut holder M6 2 06/1987 13711271190 ENDED
07 Bracket air volume determinator 1 06/1987 13711271588 $116.99 ENDED
08 Washer 6,4 2 06/1987 07119936425 $0.09 ENDED
08 Washer A6,4-200HV-ZNS3 2 06/1987 07119903791 $0.11
09 Hex bolt 2 06/1987 13711271628 $0.17 ENDED
10 Housing lower part 1 06/1987 13711271584 $170.07 ENDED
11 Rubber buffer 1 06/1987 13711289624 $3.50 ENDED
14 Rubber Mounting 2 06/1987 13711259818 $6.98
15 Air filter element 1 06/1987 13721271254 $30.67 ENDED
15 Air filter element 1 06/1987 13721278138
15 Air filter element 1 06/1987 13721278138
16 Housing upper part 1 06/1987 13711271583 $120.25 ENDED
17 Adjusting bar 4 06/1987 13711271626 $1.89 ENDED
19 Intake tube 1 06/1987 13711287327 $4.36
20 Suction tube 1 06/1987 13711287326 $4.39
Notes
  • ENDED = the part has been discontinued (no longer available).
