6' E24 635CSi Front seat backrest unlocking

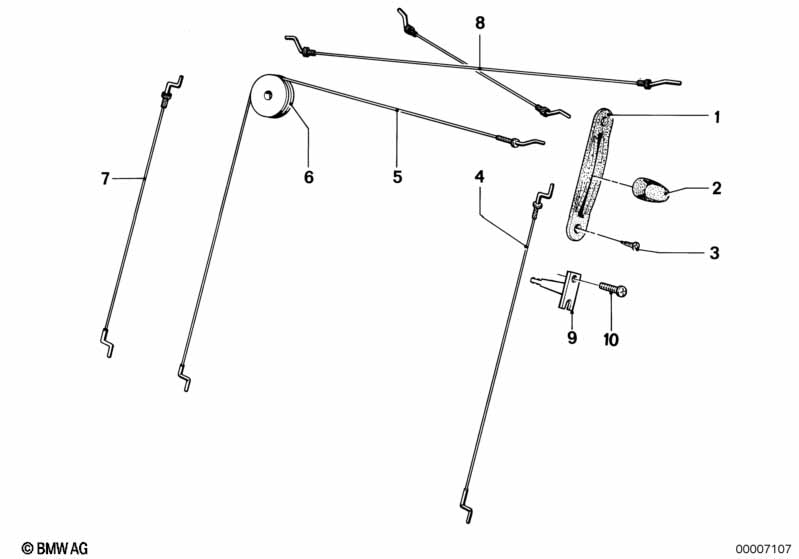

Front seat backrest unlocking
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Ausführung 621-622-623-624-625
01 Cover SCHWARZ 3 52101844588 $1.67
For vehicles with
High Line

=Yes
01 Cover LOTOSWEISS 3 52101965453 $3.34
01 Cover NATUR 3 52101965454 $1.68 ENDED
01 Cover SILBER 3 52101965455 $2.05 ENDED
02 Handle 3 52101844699 $25.79 ENDED
03 Recessed oval head sheet-metal screw ST4,2X19 6 07119902468 $0.11
ONLY APPLIES TO DRIVER'S SIDE
04 Rope 273-285MM 1 52101855276 $9.36
05 Rope inner 656-668MM 1 52101855303 $5.99
06 Cable roller 1 52101848987 $2.53
ONLY APPLIES TO CO-DRIVERS SIDE
07 Rope 273-285MM 2 52101855276 $9.36
08 Rope 382MM 3 52101854441 $19.96
ONLY APPLIES TO CO-DRIVERS SIDE
09 Lever 1 52101857978 $3.39 ENDED
10 Fillister head screw M4X10 1 07119907616 $1.07
For vehicles with
Seat, electrically adjustable, front

=Yes
10 Fillister head screw M4X25 1 07119907685 $1.18
Notes
  • ENDED = the part has been discontinued (no longer available).
