6' E24 635CSi Front seat rail

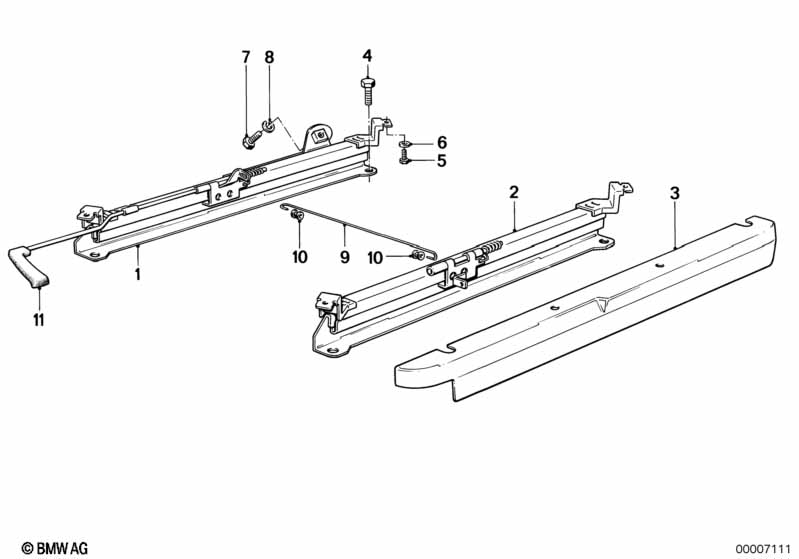

Front seat rail
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Ausführung 623-624-625
01 Seat rail inner left 1 09/1979 06/1987 52101873551 $59.36
01 Seat rail inner right 1 09/1979 06/1987 52101873552 $59.36
02 Seat rail outer left 1 09/1979 06/1987 52101873555 $31.90 ENDED
02 Seat rail outer right 1 09/1979 06/1987 52101873556 $54.68 ENDED
03 Covering outer left ANTHRAZIT 1 09/1979 06/1987 52101873537 $8.83 ENDED
03 Covering outer right ANTHRAZIT 1 09/1979 06/1987 52101873538 $8.83
03 Covering outer left NUTRIA 1 09/1982 06/1987 52101910261 $8.41 ENDED
03 Covering outer right NUTRIA 1 09/1982 06/1987 52101910262 ENDED
03 Covering outer left PERLBEIGE 1 09/1982 06/1987 52101910263 ENDED
03 Covering outer right PERLBEIGE 1 09/1982 06/1987 52101910264 ENDED
03 Covering outer left PACIFIC 1 09/1984 06/1987 52101929291 ENDED
03 Covering outer right PACIFIC 1 09/1984 06/1987 52101929292 ENDED
03 Covering outer left PINIENGRUEN 1 09/1984 06/1987 52101929293 ENDED
03 Covering outer right PINIENGRUEN 1 09/1984 06/1987 52101929294 ENDED
04 Hex bolt M6X18 8 09/1979 06/1987 52101817572 $0.26 ENDED
05 Hex bolt M10X25-8.8 ZN 8 09/1979 06/1987 07119913834 $0.71
05 Hex bolt M10X25-8.8 ZN 8 09/1979 06/1987 07119914114 $0.47 ENDED
05 Hex bolt M10X25 8.8 8 09/1979 06/1987 07119902110 ENDED
05 Hex bolt M10X25 8.8 8 09/1979 06/1987 07119908569
06 Wave washer B10-ZN 8 09/1979 06/1987 07119932112 $0.11 ENDED
06 Wave washer B10-ZNS 8 09/1979 06/1987 07119932122 $0.38 ENDED
06 Wave washer B10-ZNS3 8 09/1979 06/1987 07119904463
07 Hex bolt 2 09/1979 06/1987 72111838481 $0.73 ENDED
07 Hex bolt 2 09/1979 06/1987 72111802799 $1.00 ENDED
07 Hex bolt 2 09/1979 06/1987 07149132575 $0.56
08 Wave washer 2 09/1979 06/1987 72111808672 $0.17
09 Connection rod, seat catch, left 1 09/1979 06/1987 52101873575 $5.47
09 Connection rod, seat catch, right 1 09/1979 06/1987 52101873576 $5.91 ENDED
10 Grommet 2 09/1979 06/1987 52101807432 $7.28
11 Handle right 1 09/1979 06/1987 52101873448 $2.88
Notes
  • ENDED = the part has been discontinued (no longer available).
