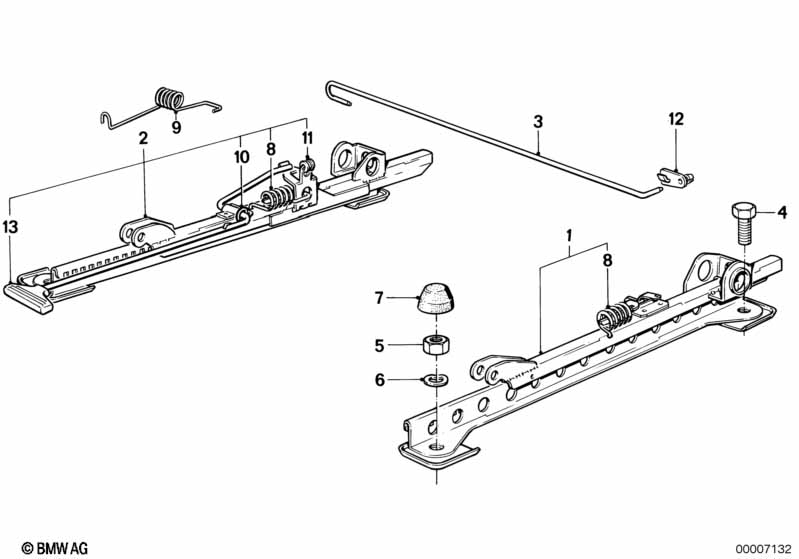

6' E24 635CSi BMW sportseat seat rail

BMW sportseat seat rail
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Ausführung 624
01 Seat rail outer left 1 09/1985 52101926815 $138.33 ENDED
01 Seat rail outer right 1 09/1985 52101926816 $54.68
02 Seat rail inner left 1 09/1985 52101926813 $67.51 ENDED
02 Seat rail inner right 1 09/1985 52101926814 $54.68
03 Connection rod, seat catch 2 09/1985 52101906410 $1.86
04 Hex bolt with washer M10X25-Z3 8 09/1985 07119913916 $1.18
08 Spring 3 09/1985 52101916609 $1.03
09 Spring 1 09/1985 52101916610 $1.17 ENDED
10 Spring left 1 09/1985 52101916607 ENDED
10 Spring right 1 09/1985 52101916608 ENDED
11 Grommet 2 09/1985 52101903872 $0.50 ENDED
12 Clamp 2 09/1985 52101903871 $0.71
13 Handle 2 09/1985 52101934417 $2.41
Notes
  • ENDED = the part has been discontinued (no longer available).
