6' E24 635CSi Front seat-el.adj. seat height

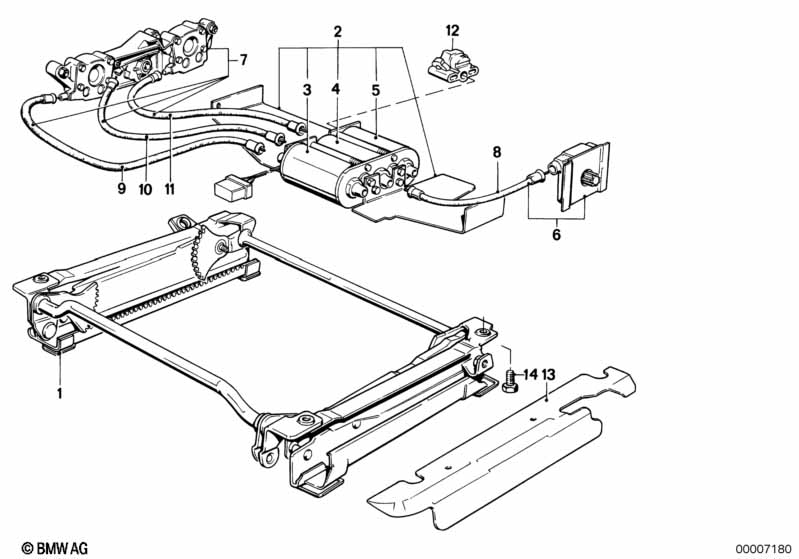

Front seat-el.adj. seat height
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Version 624-625
Version 624-625
01 Vertical seat adjuster electr.left 1 09/1983 52101917249 $329.18
01 Vertical seat adjuster electr.right 1 09/1983 52101917250 $329.18
03 Actuator vertical seat adjuster front BOSCH 2 09/1983 52101371904 $131.19
04 Actuator horizontal adjustement BOSCH 2 09/1983 52101371906 $202.84
04 Actuator horizontal adjustement 2 09/1983 52101375452 $81.47 ENDED
05 Actuator vertical seat adjuster rear BOSCH 2 09/1983 52101371905 $131.19
06 Gearbox left 2 09/1983 52101889421 $138.12
07 Gearbox right 2 09/1983 52101889109 $333.94
08 Flex.shaft horizontal adjustment left 2 09/1983 52101889424 $15.79
09 Flex.shaft vertical seat adjuster front 2 09/1983 52101889426 $15.79
For vehicles with
Memory

=Yes
09 Flex.shaft vertical seat adjuster front 1 03/1984 52101917226 $17.21
10 Flex.shaft horizontal adjustment right 2 09/1983 52101889423 $15.79
For vehicles with
Memory

=Yes
10 Flex.shaft horizontal adjustment right 1 03/1984 52101917224 $15.79
11 Flex.shaft vertical seat adjuster rear 2 09/1983 52101889425 $15.79 ENDED
For vehicles with
Memory

=Yes
11 Flex.shaft vertical seat adjuster rear 1 03/1984 52101917225 $14.76
12 Voltage regulator 3 03/1984 61311373109 $52.48 ENDED
12 Regulator horizontal seat adjustment 1 03/1984 61311385584 ENDED
12 Volt.regul.seat inclination adjustment 1 03/1984 61311385585 ENDED
13 Covering left NUTRIA 2 09/1983 06/1987 52101917245 ENDED
13 Covering right NUTRIA 2 09/1983 06/1987 52101917246 $10.38 ENDED
13 Covering left PERLBEIGE 2 09/1983 06/1987 52101917247 ENDED
13 Covering right PERLBEIGE 2 09/1983 06/1987 52101917248 ENDED
13 Covering left ANTHRAZIT 2 09/1983 52101917243 $5.39
13 Covering right ANTHRAZIT 2 09/1983 52101917244 $5.39
13 Covering left LAMA 2 09/1984 06/1987 52101919765 ENDED
13 Covering right LAMA 2 09/1984 06/1987 52101919766 ENDED
13 Covering left PACIFIC 2 09/1984 06/1987 52101930957 ENDED
13 Covering right PACIFIC 2 09/1984 06/1987 52101930958 ENDED
13 Covering left PINIENGRUEN 2 09/1984 06/1987 52101930965 ENDED
13 Covering right PINIENGRUEN 2 09/1984 06/1987 52101930966 $10.38 ENDED
For vehicles with
National version Canada

L838A=Yes
13 Covering left NATUR 2 06/1987 52101968453 ENDED
13 Covering right NATUR 2 06/1987 52101968454 $7.70 ENDED
13 Covering left SILBER 2 06/1987 52101968455 ENDED
13 Covering right SILBER 2 06/1987 52101968456 ENDED
13 Covering left INDIGO 2 06/1987 52101968779 ENDED
13 Covering right INDIGO 2 06/1987 52101968780 ENDED
13 Covering left HAVANNA 2 06/1987 52101968781 ENDED
13 Covering right HAVANNA 2 06/1987 52101968782 ENDED
13 Covering left CARDINALROT 2 06/1987 52101968785 ENDED
13 Covering right CARDINALROT 2 06/1987 52101968786 ENDED
For vehicles with
High Line

=Yes
13 Covering left ANTHRAZIT 2 11/1986 52101917243 $5.39
13 Covering right ANTHRAZIT 2 11/1986 52101917244 $5.39
13 Covering left LOTOSWEISS 2 11/1986 52101968451 ENDED
13 Covering right LOTOSWEISS 2 11/1986 52101968452 ENDED
13 Covering left NATUR 2 11/1986 52101968453 ENDED
13 Covering right NATUR 2 11/1986 52101968454 $7.70 ENDED
13 Covering left SILBER 2 11/1986 52101968455 ENDED
13 Covering right SILBER 2 11/1986 52101968456 ENDED
14 Hex bolt M6X25 8 09/1983 07119913483 $0.36
Notes
  • ENDED = the part has been discontinued (no longer available).
