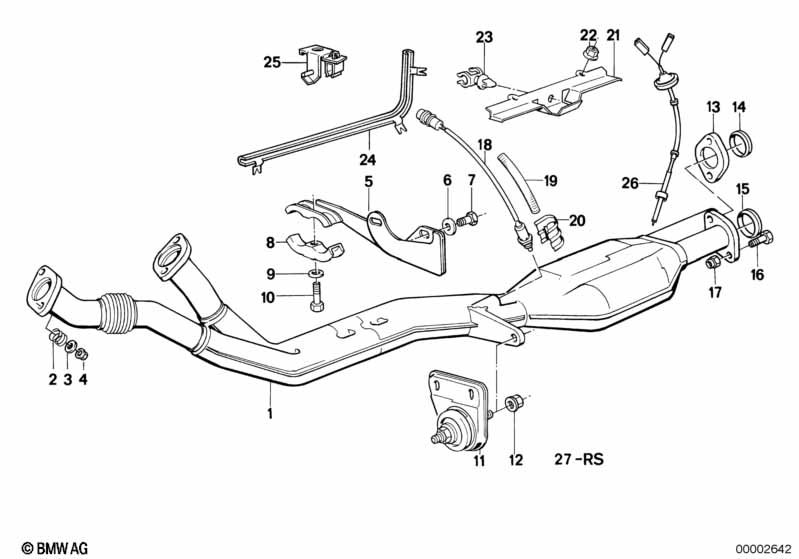

6' E24 635CSi Exhaust system with catalyst

Exhaust system with catalyst
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 RP-exhaust pipe catalytic converter 1 09/1987 11761728977 $1406.14 ENDED
02 Compression spring 4 09/1987 11761716668 $5.81
03 Washer 4 09/1987 11621716346 $0.37
04 Hex nut wiht flange M8 4 09/1987 04/1989 11621711954 $0.60 ENDED
04 Hex nut wiht flange M8 4 09/1987 18307620549
05 Holder 1 09/1987 11761716650 $29.42 ENDED
06 Washer A8,4 2 09/1987 33311108205 $0.16
07 Hex bolt M8X18 1 09/1987 03/1989 07119913627 $0.24 ENDED
07 Hex bolt M8X18-8.8-ZNS3 1 09/1987 07119904146 $0.65
08 Pipe clamp 1 09/1987 18211175787 $11.57
09 Washer 8,4X16X1,6-ZNNV 1 09/1987 07119907030
10 Hex bolt M8X65 1 09/1987 02/2000 07119912535 $0.82
10 Hex bolt M8X65 1 09/1987 41117006311 $6.28
13 Flange 1 09/1987 18111712070 $15.61
14 Gasket ring asbesto-free 50MM 1 09/1987 18111723540 $8.37 ENDED
14 Gasket ring 50MM 1 09/1987 18111723532
15 Gasket ring 47MM 1 09/1987 18111175311 $8.37
16 Hex bolt M8X55-8.8 4 09/1987 07119902957 $5.27
17 Hex nut M8 SW12 6 09/1987 11621744323 $0.85
18 Oxygen sensor L=1520MM 1 09/1987 11781720537 $215.65 SI 120396125
19 Spiral conduit 100MM 1 09/1987 61131363375 $2.66
20 Protection plate 1 09/1987 11781710590 $33.49 ENDED, +core
21 Bracket 1 09/1987 12521707275 $3.11 ENDED
22 Plastic nut M6 2 09/1987 16131176747 $0.53
23 Holder D = 13MM 1 09/1987 61131371074 $2.52
24 Guide 1 09/1987 11781310869 $24.37 ENDED
25 Holder 1 09/1987 11781716175 $8.20 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
  • +core = plus core charge (possibility of a return of the old part)
