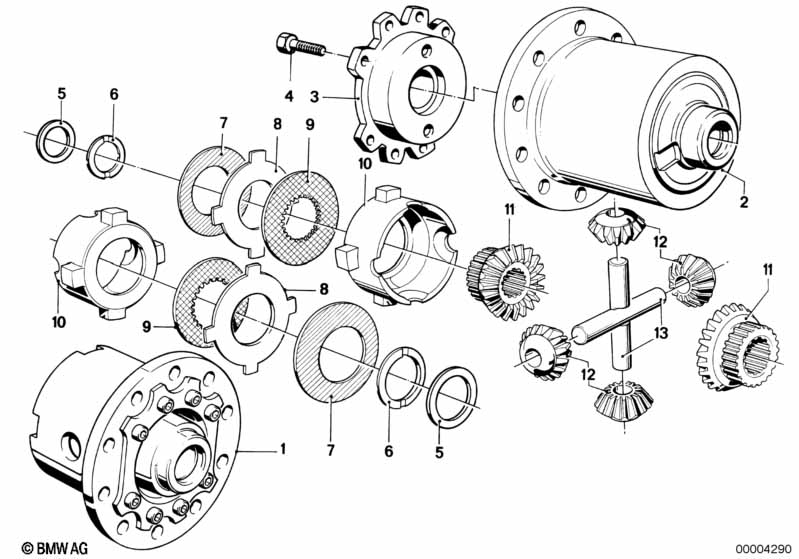

6' E24 635CSi Limited slip diff.unit-single parts

Limited slip diff.unit-single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ZF.-Nr.4061 006 503
01 Limited slip diff.unit 25% 1 33141209652 ENDED
01 AT-limited slip diff.unit 25% 1 33141209653 $1021.14 ENDED
02 Differential housing 1 33141210615 ENDED
03 Housing cover 1 33141210616 ENDED
04 Fillister-head screw M8X16 8 33141206924 $2.25 ENDED
04 Fillister-head screw M8X16 8 33147740005 $2.24
05 Stop disk 2,20MM 2 33141201931 ENDED
05 Stop disk 2,15MM 2 33141201932 ENDED
05 Stop disk 2,10MM 2 33141201933 ENDED
05 Stop disk 2,05MM 2 33141201934 ENDED
05 Stop disk 2,00MM 2 33141201935 ENDED
05 Stop disk 1,95MM 2 33141201936 ENDED
05 Stop disk 1,90MM 2 33141201937 ENDED
05 Stop disk 1,85MM 2 33141201938 ENDED
05 Stop disk 1,80MM 2 33141201939 ENDED
05 Stop disk 2,25MM 2 33141203791 ENDED
05 Stop disk 2,30MM 2 33141203792 ENDED
06 Stop disk 2 33141206919 ENDED
07 Diaphragm spring 2 33141204367 ENDED
08 Outer disc 1,90MM 2 33141203795 ENDED
08 Outer disc 2,00MM 2 33141203796 ENDED
08 Outer disc 2,10MM 2 33141203797 ENDED
09 Inner disc 2 33141210626 $53.61
10 Compression ring 2 33141206909 $179.68 ENDED
11 Side gear 2 33141210623 ENDED
12 Bevel gear 4 33141210624 ENDED
13 Bevel mate shaft 2 33141203801 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
