6' E24 M6 Engine block

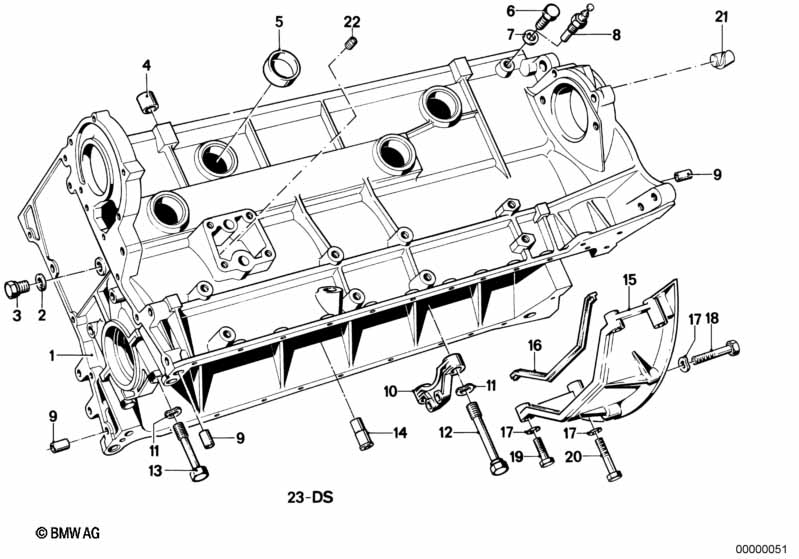

Engine block
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. engine block with pistons 1 11111310616 $2329.04 ENDED
02 Gasket ring A14X18-AL 3 07119963200 $0.38
03 Screw plug AM14X1,5 3 07119919228 $0.85
04 Dowel D=14,5MM 2 11111743118 $1.65
05 Cover lid D=45MM 6 11111714712 $3.32
05 Cover lid D=36MM 3 11111717939 $2.20
06 Screw plug M10 1 11111254189 $2.13
07 Gasket ring A10X13,5-CU 1 07119963072 $0.11
09 Dowel D=10,5MM 6 11121726238 $1.62
10 Holder 1 11111256355 ENDED
11 Wave washer B10-ZN X 07119932112 $0.11 ENDED
11 Wave washer B10-ZNS X 09/1988 07119932122 $0.38 ENDED
11 Wave washer B10-ZNS3 X 07119904463
12 Hex bolt M10X95 2 07119912695 $1.98 ENDED
13 Hex bolt M10X80 X 07119912680 $1.89
15 Bowl reinforcement 1 09/1983 11141286367 $152.99
16 Rubber seal 305MM 1 09/1983 11141287846 $6.48
17 Wave washer B8 1 09/1983 09/1988 07119932095 $0.09 ENDED
17 Wave washer 1 09/1983 07119904115 $0.09
18 ASA-Bolt M8X50-8.8-ZNS3 4 09/1983 23001222887 $1.13
18 Torx bolt M8X60 1 09/1983 23001434511 $1.68
19 Hex bolt M8X35 1 09/1983 07119913676 $0.36
20 Hex bolt M14X75 3 09/1983 07119912870 $5.38 ENDED
22 Screw plug M10X1 1 11121729502 $2.03 ENDED
22 Screw plug M10X1 1 11127539543 $2.12
Notes
  • ENDED = the part has been discontinued (no longer available).
