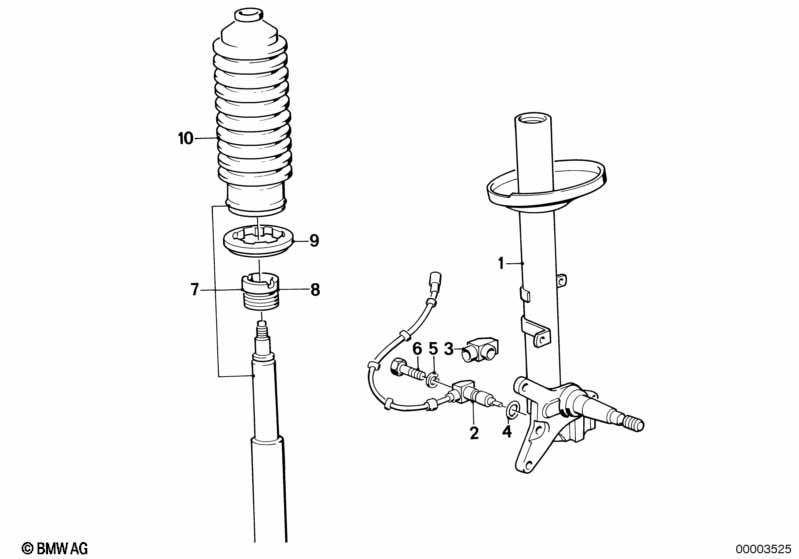

6' E24 M635CSi Front spring strut/shock absorber

Front spring strut/shock absorber
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Left front spring strut 1 31312226166 $647.29
01 Front right spring strut 1 31312226167 $647.29
02 Pulse generator 2 34521179981 $153.85
03 Protection cap 2 34511121576 $18.38 ENDED
04 Rubber Ring 15X2 2 02/1989 34521151628 $3.63 ENDED
04 O-ring 15X2 2 11007733096
05 Wave washer B6 2 07119932099 $0.38
06 Fillister-head screw M6X12 2 02/1989 07119919913 $0.20 ENDED
06 Fillister-head screw M6X12-ZNNIV SI 2 02/1989 07119905816 ENDED
06 ISA screw M6X12-8.8-ZNNIV 2 07129905867
07 Shock absorber-insert BILSTEIN 2 31322225016 $259.15
08 Threaded ring with external thread M48X1,5BILSTEIN 2 31321130025 $41.47
09 Threaded ring D=51MM 2 31311127285 $3.02
10 Rubber boot BILSTEIN 2 31321128548 $23.29
Notes
  • ENDED = the part has been discontinued (no longer available).
