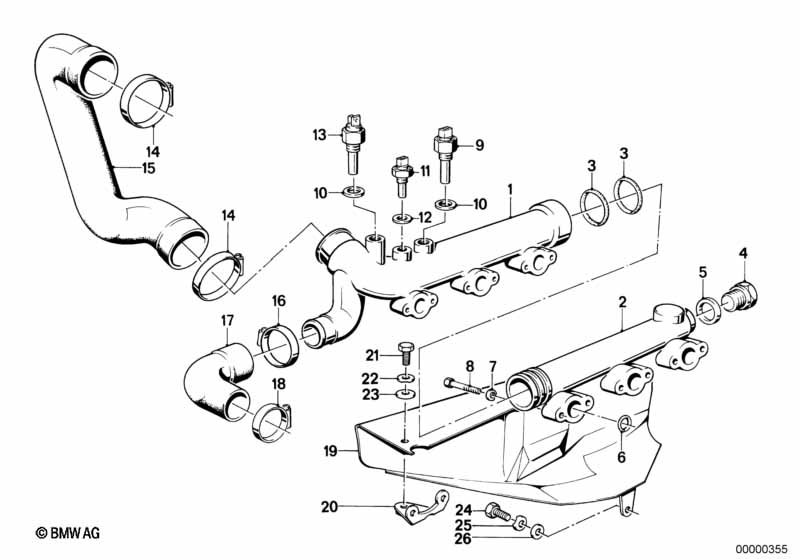

6' E24 M635CSi Cooling System Water Hoses

Cooling System Water Hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 RADIATOR LINE 1 11531307195 $276.57
01 RADIATOR LINE 1 11531307195 $276.57
01 RADIATOR LINE 1 11531310623 $141.53
02 RADIATOR LINE 1 11531304113 $141.53
03 O-ring 35,2X3 2 11531304176 $5.65
04 Screw plug M22X1,5 1 07119919028 ENDED
05 Gasket ring A22X27-AL 1 07119963355 $0.36
06 O-ring 22X2 6 11411304178 $1.83
07 WAVE WASHER B6 X 07119932099 $0.38
07 WAVE WASHER B6-ZNS3 X 07119904496 $1.78 ENDED
08 Hex bolt M6X32 X 07119912295 $0.47
09 TEMPERATURE-TIME SWITCH 1 13621362599 $72.54
10 Gasket ring A14X18-AL 2 07119963200 $0.38
11 Temperature sensor M12X1,5 1 13621709966 $37.35 ENDED
11 Temperature sensor, water 1 13621709967
12 Gasket ring A12X15,5 AL 1 07119963130 $0.09
13 TEMPERATURE SENDING UNIT/WARNING CONTACT 120CEL 1 03/1987 62161360870 $101.09
14 Hose clamp L=47-54MM 2 07129952121 $1.42
15 Hose 1 11531307210 $32.73
15 Hose 1 11531307210 $32.73
15 Hose 1 11531310625 $35.63
16 Hose clamp L32-38 1 07129952115 $1.27
17 Hose 1 11531306827 $21.63
18 Hose clamp L28-33 1 07129952113 $0.96
19 Heat resistant plate 1 11621308112 ENDED
20 Holder 4 11621308386 ENDED
21 Hex bolt M6X10 8 02/1989 07119913426 $0.25
21 Hex bolt M6X10-8.8-ZNS3 8 07119904633 $0.20
22 WAVE WASHER B6 8 07119932099 $0.38
22 WAVE WASHER B6-ZNS3 8 07119904496 $1.78 ENDED
23 Washer 6,4 8 02/1989 07119931044 $0.58 ENDED
23 Washer A6,4-ZNS 8 02/1989 07119931018 $0.40 ENDED
23 Washer A6,4-ZNNIV SI 8 07119904202
24 Hex bolt M10X16 1 07119914121 $0.41
25 WAVE WASHER B10-ZN 1 07119932112 $0.11 ENDED
25 WAVE WASHER B10-ZNS 1 02/1989 07119932122 $0.38 ENDED
25 WAVE WASHER B10-ZNS3 1 07119904463
26 Washer A10,5 1 07119931020 $0.40 ENDED
26 Washer ZNS3 1 07119904198 $0.45
Notes
  • ENDED = the part has been discontinued (no longer available).
