6' E24 M635CSi Fuel tank/attaching parts

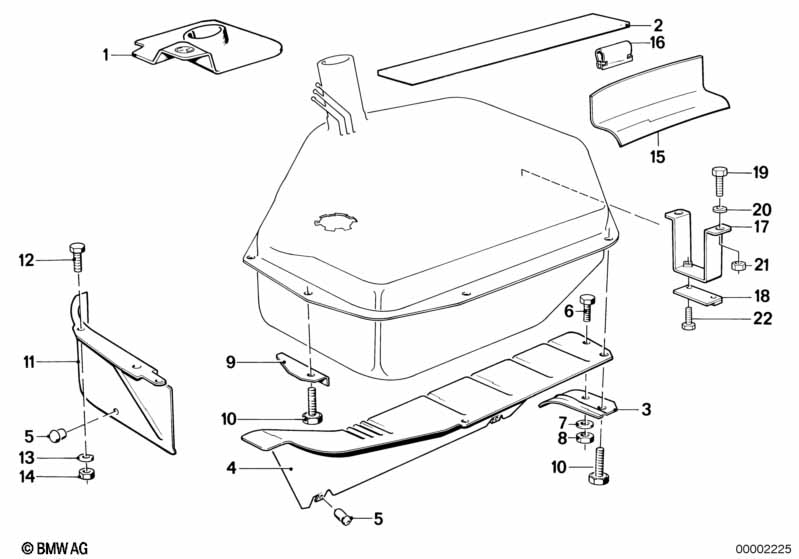

Fuel tank/attaching parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rubber seal 1 05/1982 16111119235 $12.82
For vehicles with
Saudi Arabia version

=Yes
01 Rubber seal 1 05/1982 16101152998 $14.52
02 Base 220MM 3 05/1982 16111108667 $3.59
03 Bow 1 05/1982 16111176379 $7.04
04 Protection plate 1 05/1982 16111177253 $27.11
05 Plug 2 05/1982 32212675171 $1.41
07 Wave washer B6 3 05/1982 07119932099 $0.38
08 Hex nut M6 3 05/1982 08/1996 23112322368 $0.38 ENDED
09 Support 1 05/1982 16111176381 $4.18 ENDED
10 Hex bolt with washer M10X30-Z2 4 05/1982 07119913941 $1.10
For vehicles with
Saudi Arabia version

=Yes
11 Protection plate 1 05/1982 16111178194 $27.11
12 Hex bolt M6X16-8.8-ZNS3 1 05/1982 07119904357 $0.36
13 Wave washer B6 1 05/1982 07119932099 $0.38
13 Wave washer B6-ZNS3 1 05/1982 07119904496 $1.78 ENDED
14 Self-locking hex nut M6 1 05/1982 07/2007 07129900191 $0.38 ENDED
14 Hex nut M6-8-ZNNIV SI 1 05/1982 07/2007 07129905817
17 Holder 1 05/1982 09/1985 16111178471 $6.25
17 Holder 1 05/1982 09/1985 16111178471 $6.25
17 Holder 1 05/1982 16111178471 $6.25
18 Plate 1 05/1982 09/1985 16111178476 $1.95
18 Plate 1 05/1982 09/1985 16111178476 $1.95
19 Hex bolt with washer M8X25-SB-Z1 2 05/1982 09/1985 07119915171 ENDED
19 Hex bolt with washer M8X25-SB-Z1 2 05/1982 09/1985 07119915171 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
