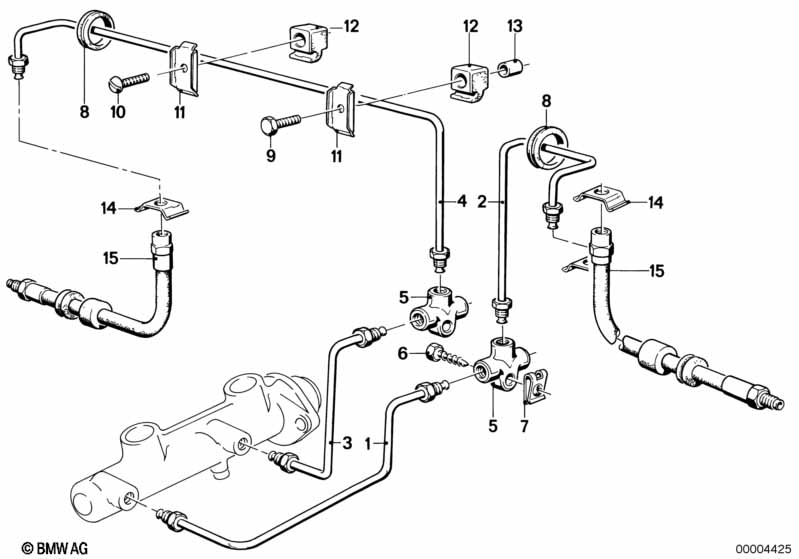

6' E24 M635CSi Brake pipe, front

Brake pipe, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Anti block system (ABS)

=Yes
05 Intermediate piece M10X1 2 05/1982 34321160028 $7.23
06 Hex head screw ST6,3X32-C-Z1 2 05/1982 07119916975 $0.36
07 Body nut ST6,3-1-ZN 2 05/1982 04/1989 07129925742 $0.25 ENDED
07 Body nut ST6,3-1 2 05/1982 04/1989 07129901663 $0.20 ENDED
07 Body nut ST6,3-1-ZNS3 2 05/1982 07129904231
08 Rubber grommet D=40MM 2 05/1982 34321154322 $1.02
09 Screw M4X17 1 05/1982 34321151858 $0.29 ENDED
10 Self tapping screw 2 05/1982 34321119239 $0.27
11 Holder 3 05/1982 34321155062 $0.60
11 Holder 3 05/1982 34321155731 $0.36
12 Clamp 3 05/1982 34321108210 $0.60
13 Spacer tube 1 05/1982 34321151857 $1.24 ENDED
14 Clip 2 05/1982 34341163565 $0.97
14 Clip 2 05/1982 34349023119 $0.79 ENDED
15 Brake hose 2 05/1982 34321159901 $85.88
Notes
  • ENDED = the part has been discontinued (no longer available).
