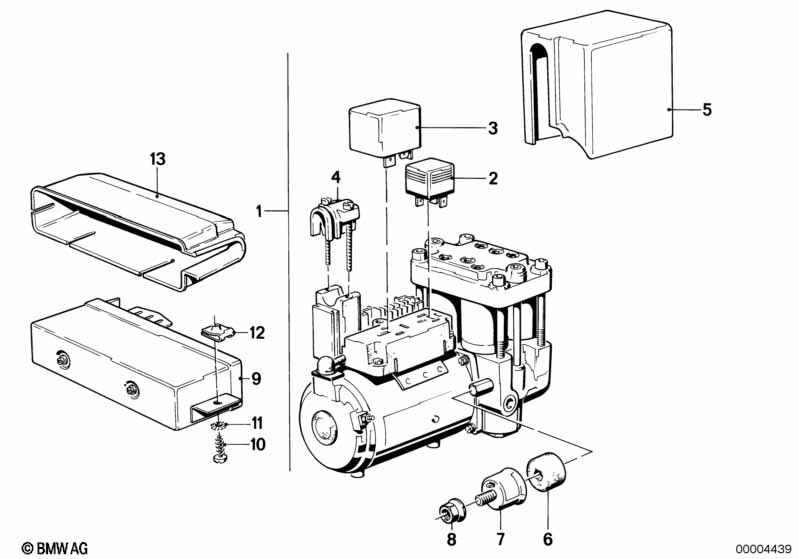

6' E24 M635CSi Anti block system-control unit

Anti block system-control unit
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hydro unit 1 05/1982 34511154995 $3189.45 ENDED
02 Relay, valve control, ABS hydraulic unit 1 05/1982 34511154228 $18.38
03 Relay electr.drive 1 05/1982 34511179402 $69.28
04 Clamp 1 05/1982 34511154335 ENDED
05 Covering cap 1 05/1982 34511154994 $24.55 ENDED
only applies to
-- Hydro unit X 05/1982 34511154995 $3189.45 ENDED
-- Hydro unit X 05/1982 34511154996 $3189.45 ENDED
06 Rubber Mounting 3 05/1982 34511150134 $2.57
07 Suspension 2 05/1982 34511150132 $4.33
08 Self-locking collar nut M8-8-ZNS 2 05/1982 04/1989 31331092887 $0.58 ENDED
08 Self-locking collar nut M8-8-ZNS3 2 05/1982 04/1989 07119904295 $0.36
08 Self-locking collar nut M8-10 ZNS3 2 05/1982 07119905374
08 Self-locking collar nut M8 2 05/1982 33521120157 $0.44 ENDED
09 Control unit ABS 1 05/1982 34521154999 $1386.48
10 Hex head screw ST6,3X19-C 2 05/1982 07119916830 $0.36
11 Tooth washer A6,4 2 05/1982 07119936133 $0.38
13 Protection cap 1 05/1982 34521154288 $10.70 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
