6' E24 M635CSi Brake pipe front ABS

Brake pipe front ABS

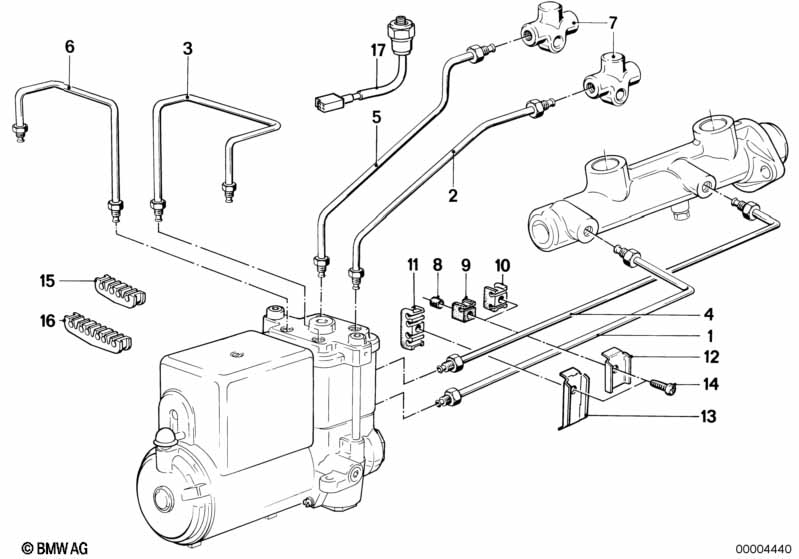

No. Description Supp. Qty  From   Up To  Part Number Price Notes
CIRCUIT 1
01 Pipe M10/M10-2338MM 1 05/1982 08/2000 34321153775 $14.92 ENDED
01 Pipe M10/M10-2338MM 1 05/1982 34326755663 $8.97
02 Pipe M10/M10-703MM 1 05/1982 08/2000 34321153693 $6.63 ENDED
02 Pipe M10/M10-703MM 1 05/1982 34326755589 $8.65
03 Pipe M10/M10-1080MM 1 05/1982 08/2000 34321153712 $8.45 ENDED
03 Pipe M10/M10-1080MM 1 05/1982 34326755607 $10.03
CIRCUIT 2
04 Pipe M10/M10-2235MM 1 05/1982 08/2000 34321153770 $14.92 ENDED
04 Pipe M10/M10-2235MM 1 05/1982 34326755658 $17.08
05 Pipe M10/M10-751MM 1 05/1982 08/2000 34321153696 $6.63 ENDED
05 Pipe M10/M10-751MM 1 05/1982 34326755591 $8.65
06 Pipe M10/M10-1980MM 1 05/1982 08/2000 34321153757 $8.68 ENDED
06 Pipe M10/M10-1980MM 1 05/1982 34326755646 $8.46
07 Intermediate piece M10X1 2 05/1982 34321160028 $7.23
08 Spacer tube 2 05/1982 34321151857 $1.24 ENDED
09 Clamp 3 05/1982 34321108210 $0.60
10 Clamp X 05/1982 34321108212 $2.70
11 Clamp X 05/1982 34321108261 $0.61
12 Holder X 05/1982 34321155062 $0.60
12 Holder X 05/1982 34321155731 $0.36
13 Holder 1 05/1982 34321155735 $0.48
13 Holder 1 05/1982 34321155737 $0.48
14 Self tapping screw X 05/1982 34321119239 $0.27
14 Screw M4X17 X 05/1982 34321151858 $0.29 ENDED
15 Brake pipe bracket X 05/1982 04/1989 34321155787 $1.62 ENDED
15 Spacer, 4-way X 05/1982 34326777692 $0.38
16 Brake pipe bracket X 05/1982 34321155786 $1.43
Notes
  • ENDED = the part has been discontinued (no longer available).
