6' E24 M635CSi Hydraulic brake servo unit

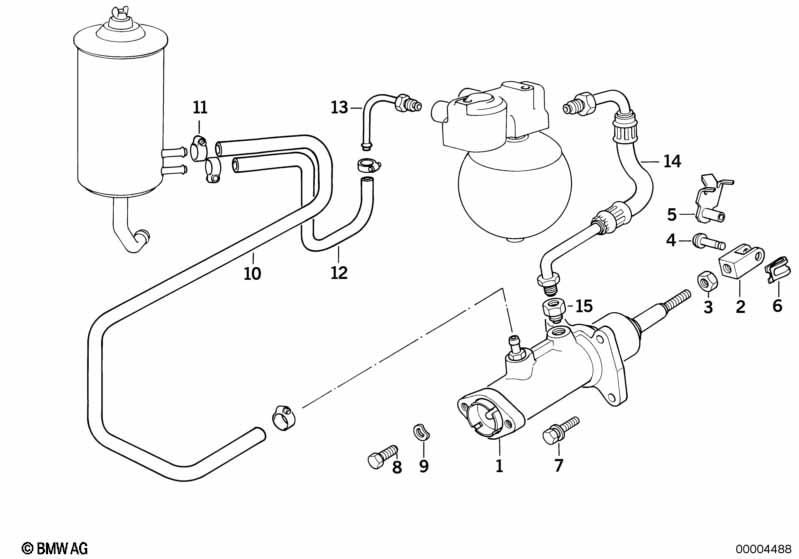

Hydraulic brake servo unit
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Brake servo unit ATE 1 05/1982 34331156925 $817.67
02 Forkhead 1 05/1982 34311112608 $4.30
03 Hex nut M10-8-ZNS 1 05/1982 07119915558 $0.88
04 Pin 1 05/1982 35211110925 $1.44
06 Clamp 1 05/1982 34331120538 $0.60
07 Hex bolt with washer M8X28-Z4 4 05/1982 07119915170 ENDED
08 Hex bolt M8X25 2 05/1982 34331152651 $12.34
09 Washer A8,4-200 2 05/1982 04/1989 07119900052 $0.11 ENDED
09 Washer 8,4X16X1,6-ZNNV 2 05/1982 07119907030
10 Hose 8X14 X 05/1982 34321119074 $17.18
10 Pipe 1 05/1982 34322225317 ENDED
10 Connector 1 05/1982 34322225417 ENDED
11 Hose clamp L12-15 4 05/1982 07129952104 $1.18
12 Hose 6X12MM X 05/1982 34321119071 $17.55
13 Pipe 1 05/1982 34321121527 $14.42 ENDED
For vehicles with
Anti block system (ABS)

=Yes
15 Reducer 1 34511150753 $56.86 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
