6' E24 M635CSi Wiring connections-plug terminal

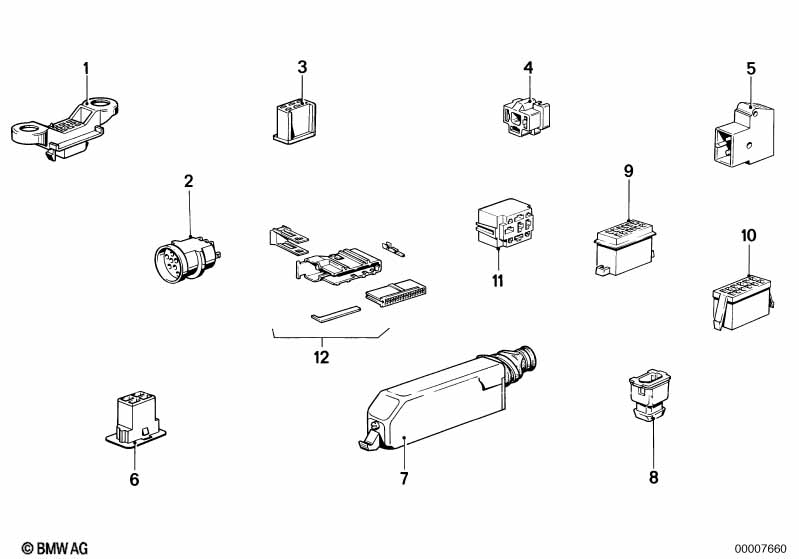

Wiring connections-plug terminal
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Plug terminal for engine diagnosis 1 09/1980 12521273100 $1.87
03 Plug terminal for tail light 2 61131361247 $1.41 ENDED
04 Plug terminal for head light 4 06/1987 61131352234 $1.72
05 Plug terminal for hand lamp 1 61131355486 $1.05
06 Plug terminal heater fan 1 64111355785 $1.33 ENDED
07 Plug housing 25POL 1 09/1981 12521277176 $13.82 ENDED
09 Plug terminal for fuse box 1 09/1981 61131368197 $3.86
10 Plug terminal for fuse box 1 09/1981 12521273189 $2.73
11 Plug housing 2 09/1980 61131369897 $2.59 ENDED
12 Repair kit contact socket 1 05/1982 61139057151 $45.80 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
