5' F10 LCI 520d Rear brake - control module EMF

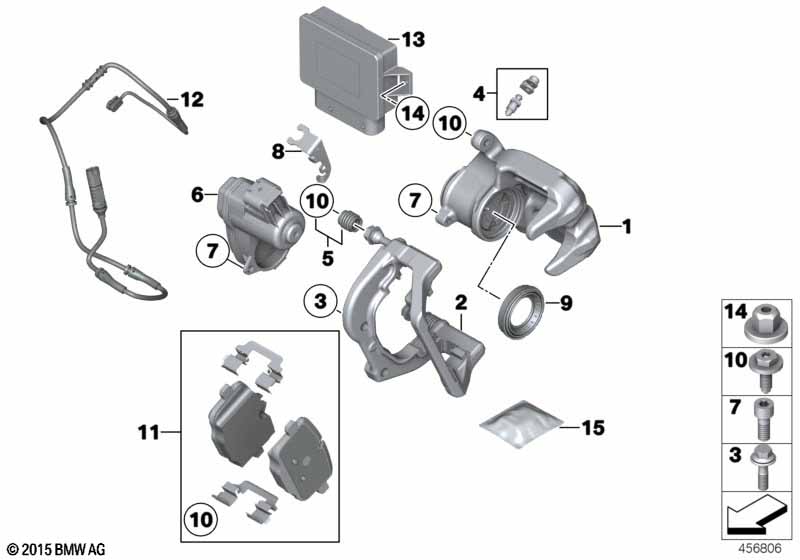

Rear brake - control module EMF
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Caliper housing left 1 34216793041
01 Caliper housing right 1 34216793042
02 Calliper carrier left 1 34216793051
02 Calliper carrier right 1 34216793052
03 Torx screw with washer M12X1,5X43 ZNS3 4 34106864424
04 Repair kit ventilation valve 2 34116768188 $6.52
05 Repair kit bellows 2 34206786053 $20.06
06 Actuator EMF 2 34216794618
07 Torx bolt 4 34206786055
08 Cable bracket, left 1 34216793043
08 Cable bracket, right 1 34216793044
09 Seal 2 34206786064
10 Hex bolt M8 4 34116768190 $3.12
11 Repair kit, brake pads asbestos-free 1 34216862202
In addition, the following parts are
essential:
- brake pad sensor
- brake pad paste
refer to Repair Manual!
12 Brake pad wear sensor, rear 1 34356791962
13 Control unit EMF 1 34436887358
15 Brake pad paste 3G 2 83192158851
