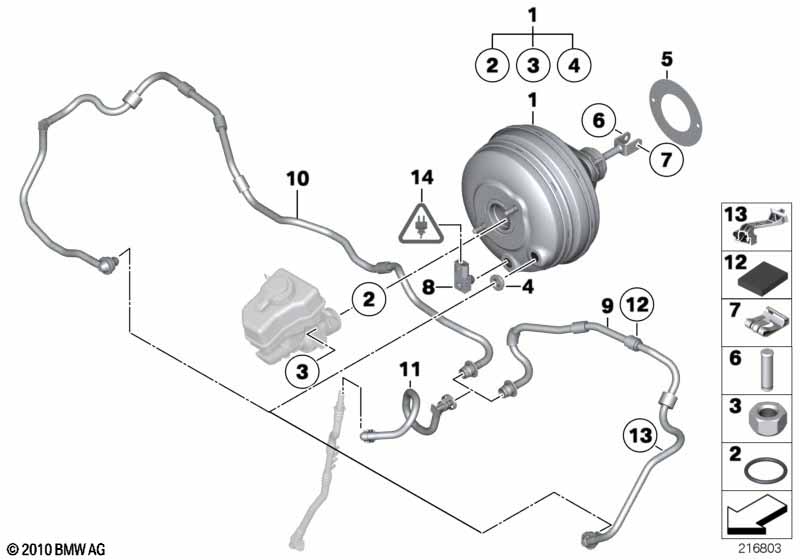

5' F11 LCI 520d Power brake unit depression
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | For further information see main group 11 Vacuum control - engine |
||||||||
| 01 | Brake servo unit | 1 | 34336792956 | ||||||
| only in conjunction with | |||||||||
| -- | Seal, brake booster | 1 | 34336850655 | ||||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | |||||
| 02 | Brake master cylinder o-ring | 1 | 34311159007 | $3.15 | |||||
| 03 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | ||||
| 04 | Gasket ring | 1 | 34331158929 | $3.15 | |||||
| 05 | Seal, brake booster | 1 | 34336850655 | ||||||
| 06 | Brake pedal pin | 1 | 34336772928 | $0.66 | |||||
| 07 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | ||||
| 10 | Vacuum pipe | 1 | 11667598231 | ||||||
| 11 | Vacuum pipe | 1 | 11667598232 | ||||||
| 12 | Hook&loop fastener | 25X12X6,01 | 1 | 51377125989 | $2.92 | ||||
| 13 | Clip, vacuum pipe | 1 | 11667599548 | ||||||
