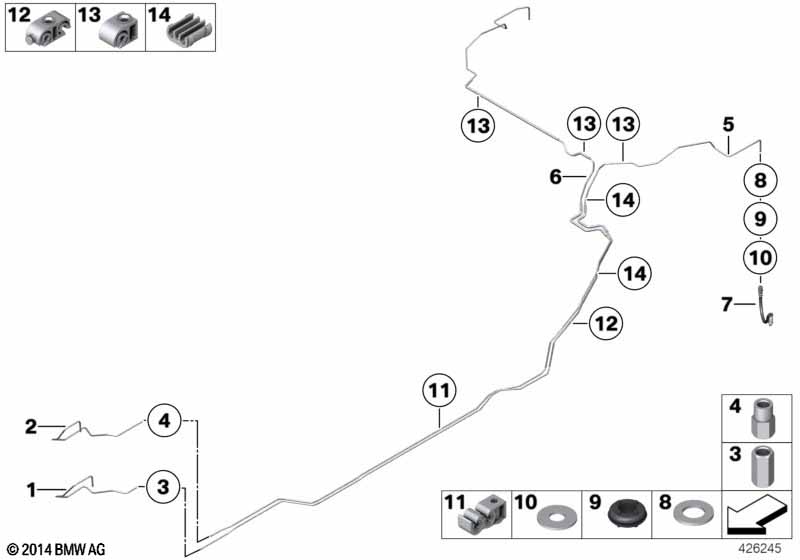

5' F11 LCI 520d Brake pipe rear
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M12/M12 | 1 | 03/2012 | 34326792651 | ||||
| 02 | Pipe | M10/M12 | 1 | 03/2012 | 34326792653 | ||||
| 03 | Connection piece | M12X1 | 1 | 34326868935 | |||||
| 04 | Connection piece | M10X1 | 1 | 34326868934 | |||||
| 05 | Pipe with protective hose | M10/M12 | 1 | 34326784755 | |||||
| 06 | Pipe with protective hose | M10/M10 | 1 | 34326784757 | |||||
| 07 | Brake hose rear | 2 | 34326775259 | ||||||
| 08 | Washer | 14X25X2-ZNS3 | 2 | 34301163613 | $0.83 | ||||
| 09 | Rubber grommet | 2 | 09/2013 | 03/2015 | 34306865954 | ||||
| 09 | Rubber grommet | 2 | 03/2015 | 34306875170 | |||||
| 10 | Washer | 10X25X1,5-ZNS3 | 2 | 37131114028 | $0.80 | ||||
| 11 | Wire clip, dual | 5 | 07/2015 | 34306784201 | $1.63 | ||||
| 11 | Wire clip, dual | 5 | 34326871117 | ||||||
| 12 | Brake pipe bracket | 4 | 06/2019 | 34301161736 | $1.20 | ||||
| 12 | Brake pipe bracket | 4 | 34326880898 | ||||||
| 13 | Brake pipe bracket | 3 | 34326855500 | ||||||
| 14 | Spacer holder | 1 | 34321107991 | $1.02 |
