5' F11 LCI 520d Towing hitch, detachable
Sponsored links
Sponsored links

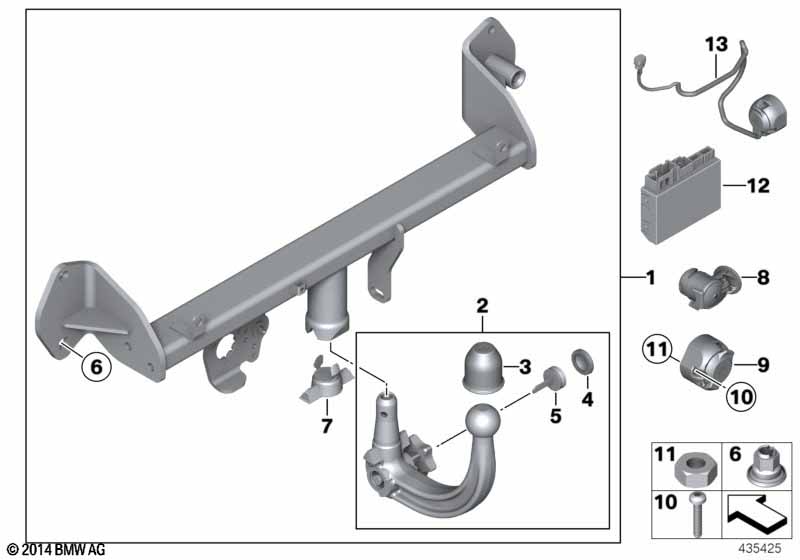

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||
| 01 | Towing hitch, detachable | 1 | 03/2015 | 71606850160 | ENDED, +core | ||||
| 01 | Kit for trailer coupling, removable | 1 | 71606876028 | ||||||
| 02 | Removable ball | 1 | 71606852954 | ||||||
| 03 | Trailer hitch ball protection cap | 1 | 71601246076 | ||||||
| 04 | protective cap, key | 1 | 71601134422 | $1.04 | |||||
| 05 | Key (code) 2axx | WESTFALIA | 1 | 71601134421 | |||||
| 06 | Hex nut | M12X1,5 | 4 | 71606795381 | |||||
| 07 | Blind plug | ROT | 1 | 71601090489 | $8.15 | ||||
| 08 | Adapter | 13 - 7 | 1 | 61136942997 | $34.12 | ||||
| 09 | Plug-in socket | 1 | 61131378999 | $76.67 | |||||
| 10 | Countersunk screw | M5 X 35 | 3 | 07119904582 | |||||
| 11 | Hex nut | M5-8-ZNNIV SI | 3 | 07119905729 | |||||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 03/2015 | 71606870517 | ENDED | |||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 11/2015 | 71606872319 | ENDED | |||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 03/2016 | 71606874848 | ENDED | |||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 11/2016 | 71606879426 | ENDED | |||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 02/2017 | 71606884357 | ENDED | |||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 71606889589 | |||||
| 13 | Retrofit cable set for power socket | 1 | 61122350886 | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
