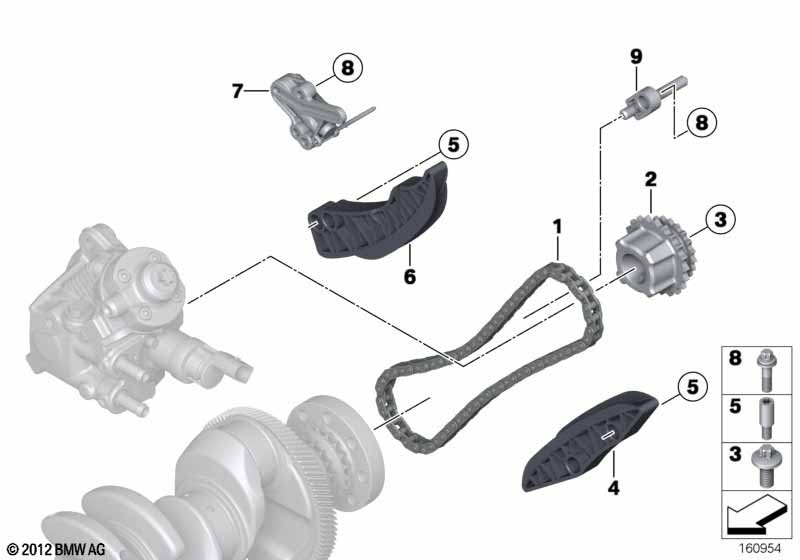

5' F11 LCI 530dX Timing - Timing Chain Lower P
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing chain | 1 | 11/2017 | 13528570652 | ENDED | ||||
| 01 | Timing chain | 1 | 11/2019 | 13528588693 | |||||
| 01 | Timing chain | 1 | 13528490225 | ||||||
| 02 | Sprocket | 1 | 13527800025 | ||||||
| 03 | ASA-Bolt | M12X1 | 1 | 13527800395 | |||||
| 04 | Guide rail | 1 | 13528515670 | ||||||
| 05 | Bolt | 3 | 13527797908 | ||||||
| 06 | Chain tensioner | 1 | 13528515671 | ||||||
| 07 | Chain tensioner | 1 | 13527797905 | ||||||
| 08 | ASA-Bolt | M6X22-Z1 | 3 | 13527800396 | |||||
| 09 | Oil Spraying Nozzle | 1 | 13527797909 |
Notes
- ENDED = the part has been discontinued (no longer available).
