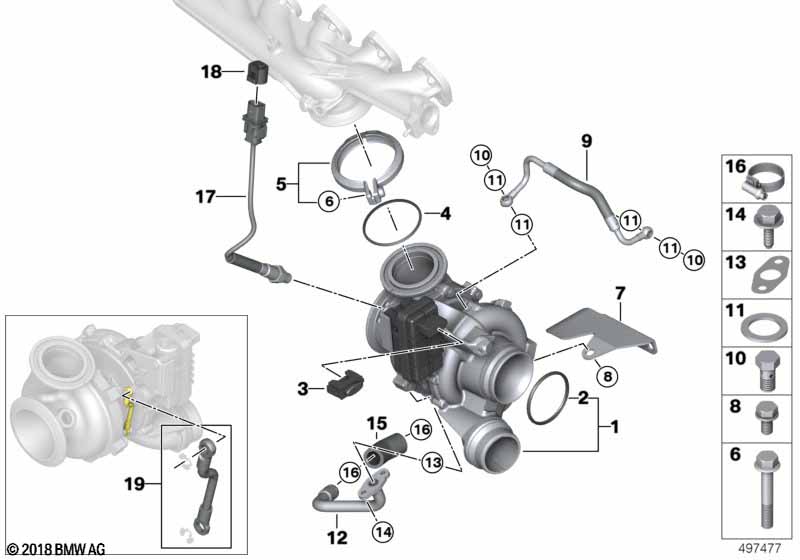

5' F11 LCI 530dX Turbo charger with lubrication

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
	Please always observe repair instructions 11 65 020!
01	Exch. turbo charger		1			11657823270
	only in conjunction with
--	Installation kit for turbocharger	VALUE LINE	1			11652457367
02	Preformed seal		1			11617796622	$6.65
04	Gasket Steel		1			11657808159
05	Muffler clamp		1			11657804161			ENDED
05	Muffler clamp		1			11658518404
06	Hex bolt	M8X50 A2-70	1			11657797871	$2.05
07	Support		1			11657799760
08	Hex bolt with washer	M8X16	3			07119905528	$0.62
09	Oil pipe		1			11427800611
10	Hollow bolt	M10X1-ZNNIV SI	2			07119907291
11	Gasket ring	A10X15-CU	4			07119905041	$0.25
12	Return pipe		1			11657823287
13	Gasket Asbestos Free		1			11422246091	$1.19
14	Hex bolt	M6X14	2			07119906126
15	Hose		1			11427807796
16	Hose clamp	L16-30	2			64218367179	$1.07

Notes

• ENDED = the part has been discontinued (no longer available).
