5' F11 LCI 530dX Exhaust manifold-AGR
Sponsored links
Sponsored links

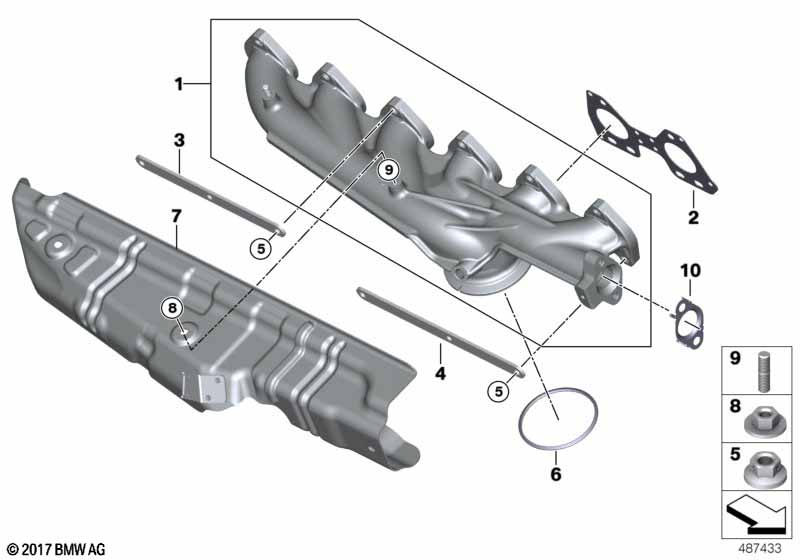

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | 1 | 11628519607 | ||||||
| 02 | Gasket Steel | 3 | 02/2013 | 11627811221 | $11.81 | ENDED | |||
| 02 | Gasket Steel | 3 | 11628509783 | ||||||
| 03 | Reinforcement plate | 3 | 09/2012 | 11628508282 | |||||
| 03 | Reinforcement plate | 3 | 11628572121 | ||||||
| 05 | Flange nut | M7 | 12 | 09/2017 | 11627800122 | ENDED | |||
| 05 | Flange nut | M7 | 12 | 11628597827 | |||||
| 06 | Gasket Steel | 1 | 11657808159 | ||||||
| 07 | Heat protection shield | 1 | 11628511809 | ||||||
| 08 | Hex nut | 3 | 11628508395 | ENDED | |||||
| 08 | Hex nut | BM6-8-ZNS3 | 3 | 07129904870 | $0.36 | ||||
| 09 | Stud bolt | M6X22 | 3 | 07129905552 | $4.44 | ||||
| 10 | Gasket Steel | 1 | 11628576287 |
Notes
- ENDED = the part has been discontinued (no longer available).
