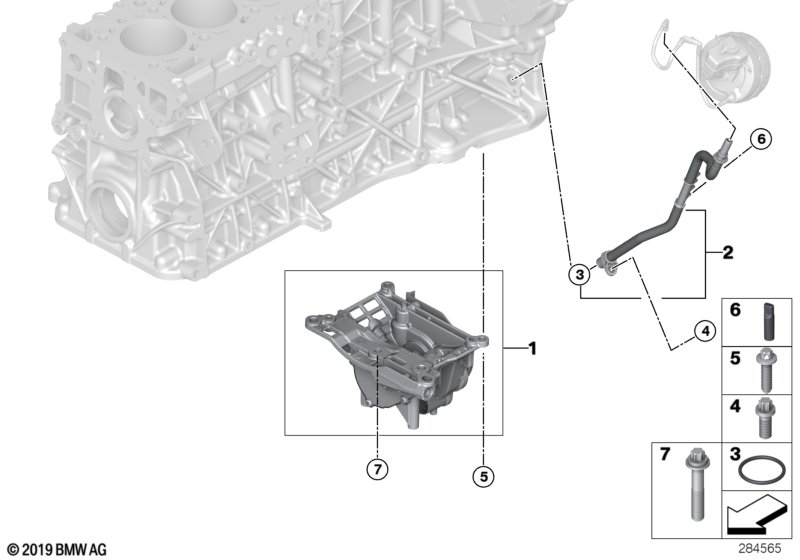

5' F11 LCI 530dX Vacuum pump with tubes
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | VACUUM PIPE REFER TO MAIN GROUP 34 |
||||||||
| 01 | Oil/vacuum pump assembly | 1 | 11417823009 | +core | |||||
| 02 | Vacuum pipe | 1 | 11668513294 | ||||||
| only in conjunction with | |||||||||
| -- | Cap | 2 | 11667803829 | ||||||
| 03 | O-ring | 11,25X2 | 1 | 11667807990 | |||||
| 04 | ASA-Bolt | M5X12-ZNNIV SI | 1 | 07129906037 | |||||
| 05 | Torx bolt | M8X30 | 4 | 06/2014 | 11137800621 | $1.08 | ENDED | ||
| 05 | ASA-Bolt | M8X30 | 4 | 06/2014 | 11138592611 | ||||
| 05 | ASA-Bolt | M8X35 | 4 | 06/2014 | 11418612615 | ||||
| 06 | Cap | 1 | 11667803829 | ||||||
| 07 | ASA-Bolt | M8X45 | 1 | 11417809835 | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
