5' F11 LCI 530dX Intake manifold-supercharg.air duct/AGR

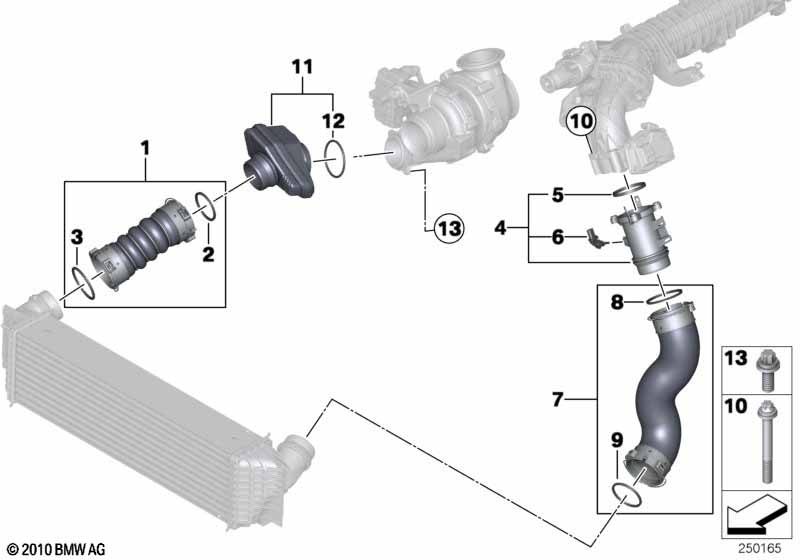

Intake manifold-supercharg.air duct/AGR
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Charge air line 1 11618513451
02 Preformed seal 1 11/2016 11618506786 $8.69 ENDED
02 Preformed seal 1 13718596850
03 Preformed seal 1 11/2016 11618506786 $8.69 ENDED
03 Preformed seal 1 13718596850
04 Charge air tube 1 11618519492
05 Profile-gasket 1 11618509400
06 Intake air temperature sensor 1 13628519445
07 Charge air line 1 11618516509
08 Preformed seal 1 11/2016 11618506786 $8.69 ENDED
08 Preformed seal 1 13718596850
09 Preformed seal 1 11/2016 11618506786 $8.69 ENDED
09 Preformed seal 1 13718596850
10 ASA bolt with washer M6X52-U1-ZNNIV 3 07129907128
11 Noise attenuator 1 11658513672 +core
12 O-ring 63X4-FPM-70 1 11658516724
13 ASA-Bolt M6X16 ZNNIV SI 2 07129905905
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
