5' F11 LCI 530dX Turbocharger & install kit 'Value Line'
Sponsored links
Sponsored links

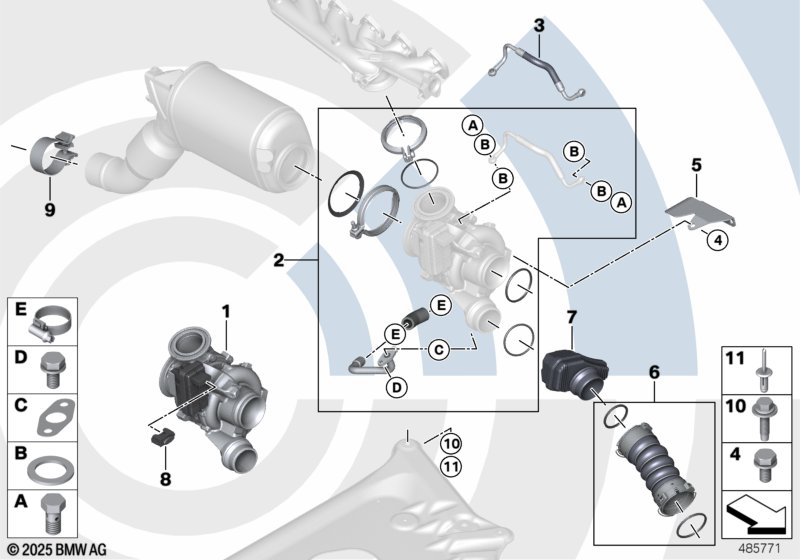

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| Please always observe repair instructions 11 65 020! |
|||||||||
| 01 | Exch. turbo charger | 1 | 11657823270 | ||||||
| only in conjunction with | |||||||||
| -- | Installation kit for turbocharger | VALUE LINE | 1 | 11652457367 | |||||
| 02 | Installation kit for turbocharger | VALUE LINE | 1 | 11652457367 | |||||
| 03 | Oil pipe | 1 | 11427800611 | ||||||
| 04 | Hex bolt with washer | M8X16 | 3 | 07119905528 | $0.62 | ||||
| 04 | Hex bolt with washer | M8X16-Z1 | 3 | 07119900268 | $0.53 | ENDED | |||
| 05 | Support | 1 | 11657799760 | ||||||
| 06 | Charge air line | 1 | 11618513451 | ||||||
| 07 | Noise attenuator | 1 | 11658513672 | +core | |||||
| 09 | Muffler clamp | D=75,9MM | 1 | 18307793766 | $15.83 | ||||
| 10 | Screw self-tapping | M8X33-10.9 ZNS3 | 10 | 31106783907 | $0.98 | ||||
| 11 | Blind rivet | 4 | 07147234212 | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
