5' F11 LCI 530dX Mounting parts f radiator

Sponsored links

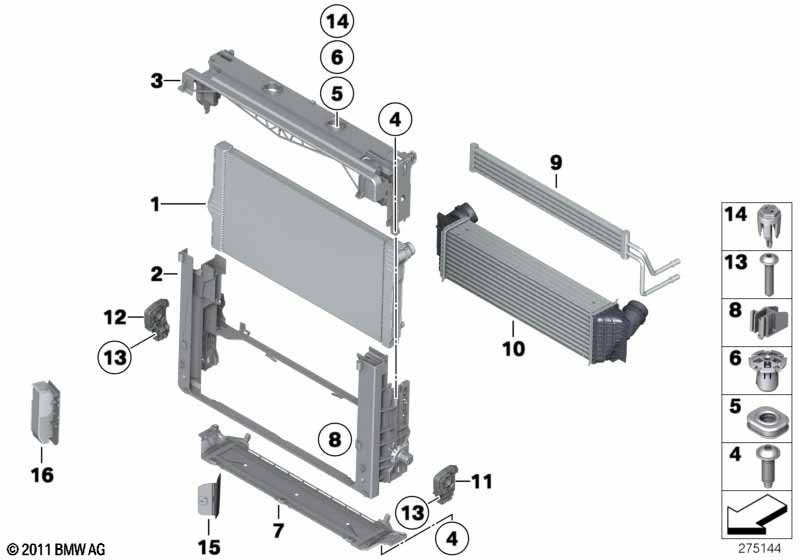

No.	Description	Supp.	Qty	Part Number	Price
01	Radiator		1	17118509175
	only in conjunction with
--	Blind plug	D=12	1	11531439134	$8.82
02	Module carrier		1	17117804617
	only applies to Condenser for air conditioning see Image Text Unit BTE 64_1658
03	cover, module carrier		1	17117639071
04	Screw self-tapping	D6X20 ZNS3	6	17117536971	$1.12
05	Module bushing		2	17117602064
06	Plug		2	17117575392
07	cover, module carrier		1	17517804619
09	Power steering cooler		1	17117570100
10	Charge-air cooler		1	17517805629
11	Bracket for module, left		1	17117575247	$8.92
12	Bracket for module, right		1	17117575248	$8.92
13	Fillister head screw	M6X30	2	17117596108
14	Clip		2	17117595701
