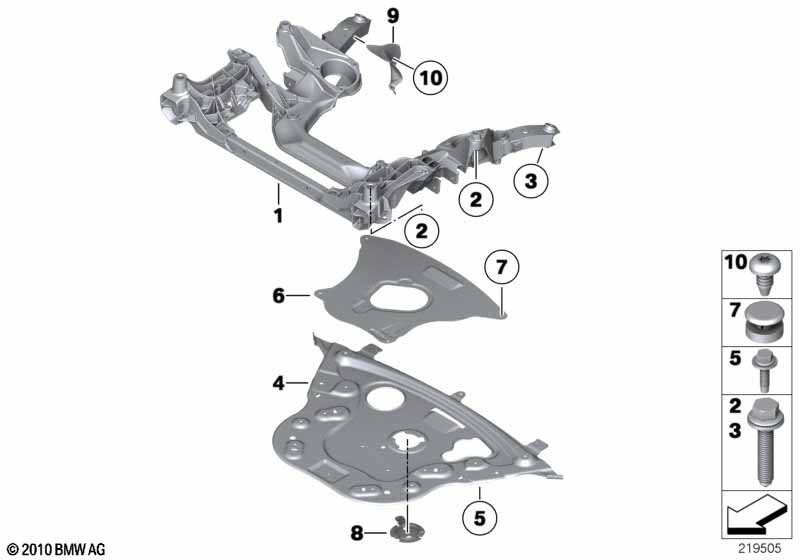

5' F11 LCI 530dX Front axle support
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Front axle support | 1 | 31116799321 | ||||||
| only in conjunction with | |||||||||
| -- | Blind rivet nut, flat headed | M8 | 1 | 41327000571 | $1.75 | ||||
| 02 | Hexagon screw with flange | M12X1,5X65-10.9 | 4 | 31106770256 | $2.56 | ||||
| 03 | Hexagon screw with flange | M12X1,5X95-ZNS3 | 2 | 31106760222 | $2.81 | ||||
| 04 | Reinforcement plate | 1 | 31116777727 | $149.32 | |||||
| 05 | Screw self-tapping | M8X33-10.9 ZNS3 | 10 | 31106783907 | $0.98 | ||||
| 06 | Protection plate | 1 | 31116795211 | ||||||
| 07 | Blind rivet | 4 | 07147234212 | ||||||
| 08 | Cover, stiffening plate front | 1 | 31116782618 | ||||||
