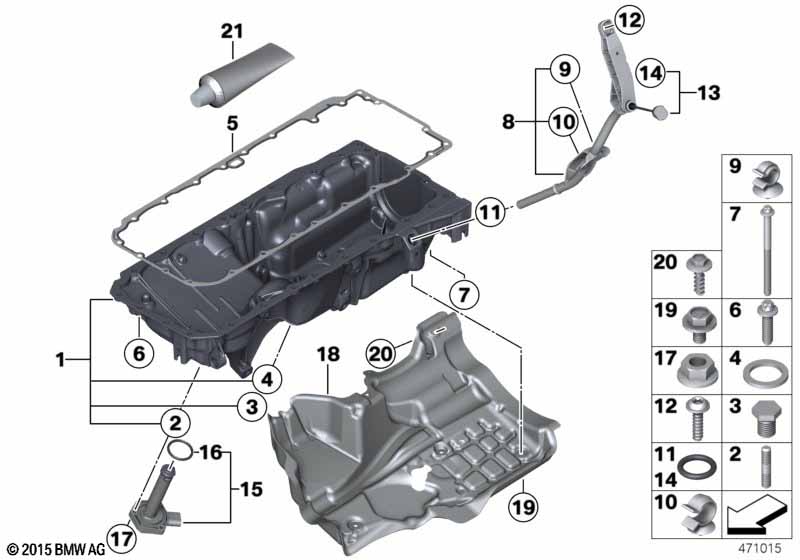

5' F11 LCI 535dX Oil pan/oil level indicator

Oil pan/oil level indicator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil Pan 1 11137800325
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
02 Stud bolt M6X30-ZNNIV SI 3 07129904544 $1.42
03 Screw plug M12X16 1 11137535106 $3.68
04 Gasket ring A12X16-CU 1 07119963132 $0.38
05 Gasket Steel 1 11137809836
Required for repair
-- Torx bolt M8X30 22 11137800621 $1.08 ENDED
-- Torx bolt M8X110 2 11137800625
06 Torx bolt M8X30 22 10/2015 11137800621 $1.08 ENDED
06 ASA-Bolt M8X30 22 11138592611
07 Torx bolt M8X110 2 11137800625
08 Guide tube 1 11438511818 +core
09 Tubing support D10-11 1 13532245954
10 Tubing support D=17/D=19 1 13537792950 $1.08
11 O-ring 14X3 1 11437794698 $1.19
12 Screw for thermoplastic plastics 60X22 1 06/2014 13627805193 $0.53
12 Screw 6X20 1 06/2014 07129907489
13 Dipstick 1 11438513536 +core
14 O-ring 9X2,2 2 11431717666 $0.73
15 Oil levelling sensor 1 12617607909
16 Gasket ring 1 12611744292 $6.42
17 Hex nut M6-8-ZNNIV SI 3 07119905544 $0.64
18 Cover, acoustic 1 11148512651
19 Screw self-tapping M6X14,5 4 11148570144
20 Plastic bolt 6,0X16-Z2 1 10/2013 12907569973 $0.47
20 Clip 1 10/2013 51337025635 $0.42
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
