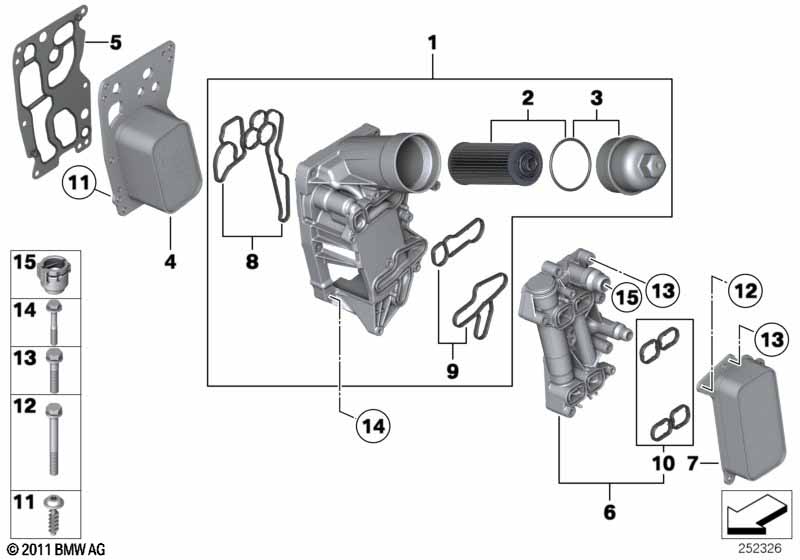

5' F11 LCI M550dX Lubricat.syst.-oil filter,heat exchanger
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter | 1 | 11428515153 | ||||||
| 02 | Set oil-filter element | 1 | 11427807177 | $19.08 | |||||
| 03 | Oil filter cover | 1 | 11428515220 | ||||||
| 04 | Heat exchanger | 1 | 11428515157 | ||||||
| 05 | Gasket | 1 | 11428515181 | ||||||
| 06 | Thermostat housing with thermostat | 1 | 11428507694 | ||||||
| 07 | Heat exchanger | 1 | 11428510856 | ||||||
| 08 | Gasket set | 1 | 11428580679 | ||||||
| 08 | Gasket set | 1 | 11428580679 | ||||||
| 09 | Gasket set | 1 | 11428580680 | ||||||
| 10 | Gasket set | 1 | 11428580681 | ||||||
| 11 | Fillister head screw | DELTA PT4X16 | 2 | 07149197038 | |||||
| 12 | Hex bolt with washer | M6X55-Z1 | 4 | 07119904526 | $0.56 | ||||
| 13 | Hex bolt with washer | M6X30-ZNNIV SI | 5 | 07119906123 | $0.81 | ||||
| 14 | Torx bolt | M6X40 ZNNIV SI | 8 | 11137800620 |
