5' F11 LCI M550dX Cooling system - turbocharger/boost air

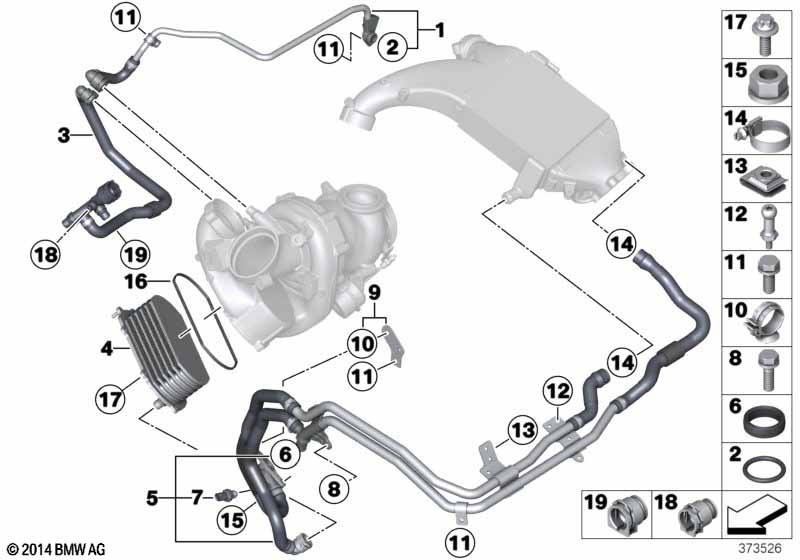

Cooling system - turbocharger/boost air
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Coolant pipe, supply line 1 11538514998
02 O-ring 16X2,5 1 11537808102 $2.19
03 Coolant hose 1 11538513837
04 Charge-air cooler 1 17517823884
05 Coolant line 1 08/2013 11538511300 ENDED
05 Coolant line 1 11538578988
06 Profile-gasket 16,4X2,8 1 11538519881
07 Coolant temperature sensor 1 13627823993
08 Hex bolt M6X18MM 1 32416782036 $0.48
09 Holder 1 11538517181
10 Hose clamp 1 17127807844 $1.22
11 Hex bolt with washer M6X16-U1-8.8 4 07119904524 $0.25
12 Pin 2 13717802510 $2.73
13 Clip nut M6-ZNS3 3 11427789289 $1.07
14 Hose clamp L16-30 2 64218367179 $1.07
15 Hex nut with plate AM6-8-ZNNIV SI 2 07129904553 $0.64
16 Gasket 1 17518515017
17 Star-socket screw M6X16-8.8-ZNS3 6 07119907242
18 Cap D=6 1 17128515062
19 Blind plug D=12 1 11531439134 $8.82
Notes
  • ENDED = the part has been discontinued (no longer available).
