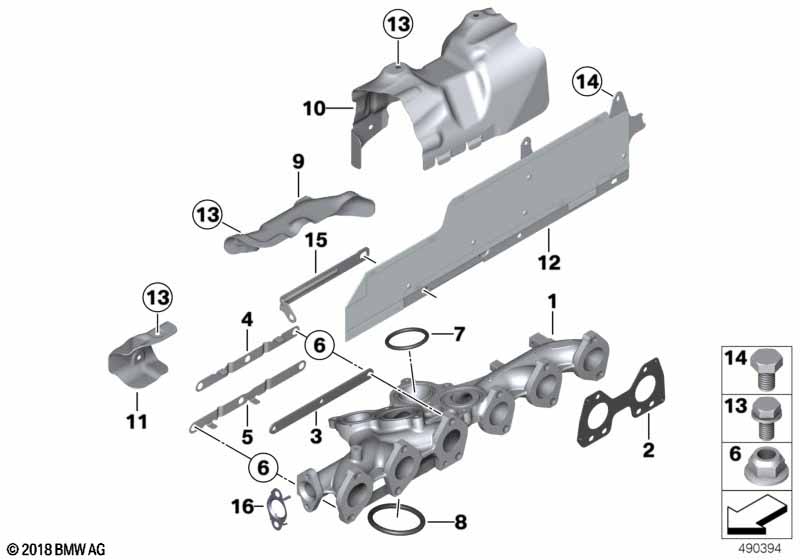

5' F11 LCI M550dX Exhaust manifold-AGR
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | 1 | 11628508173 | +core | |||||
| 02 | Gasket Steel | 3 | 08/2016 | 11628506402 | ENDED | ||||
| 02 | Exhaust manifold/cylinder head gasket | 3 | 11628579891 | ||||||
| 03 | Reinforcement plate | L=189MM | 3 | 11628517272 | |||||
| 04 | Securing plate | 3 | 11628517601 | ||||||
| 05 | Securing plate | 1 | 11628517602 | ||||||
| 06 | Flange nut | M8 | 12 | 11628517274 | |||||
| 07 | Gasket Steel | 4 | 11658518880 | ||||||
| 08 | Gasket Steel | 1 | 11657808159 | ||||||
| 09 | Heat protection shield | 1 | 11628506404 | ||||||
| 10 | Heat protection shield | 1 | 11628506403 | ||||||
| 11 | Heat protection shield | 1 | 11628506405 | ||||||
| 12 | Heat protection | 1 | 11128511646 | ||||||
| 13 | Hex bolt with washer | M6X12-U1-8.8 | 7 | 07119904517 | $0.36 | ||||
| 14 | Hex bolt with washer | M8X14-10.9 | 4 | 32427574840 | $0.62 | ||||
| 15 | Holder | 1 | 11128517158 | ||||||
| 16 | Gasket Steel | 1 | 11628576287 |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
